Scott Aerator DA-20 Solar Pond Aerator Fountain

Save Your Pond With The Solar Powered DA-20 Display Aerator

Description

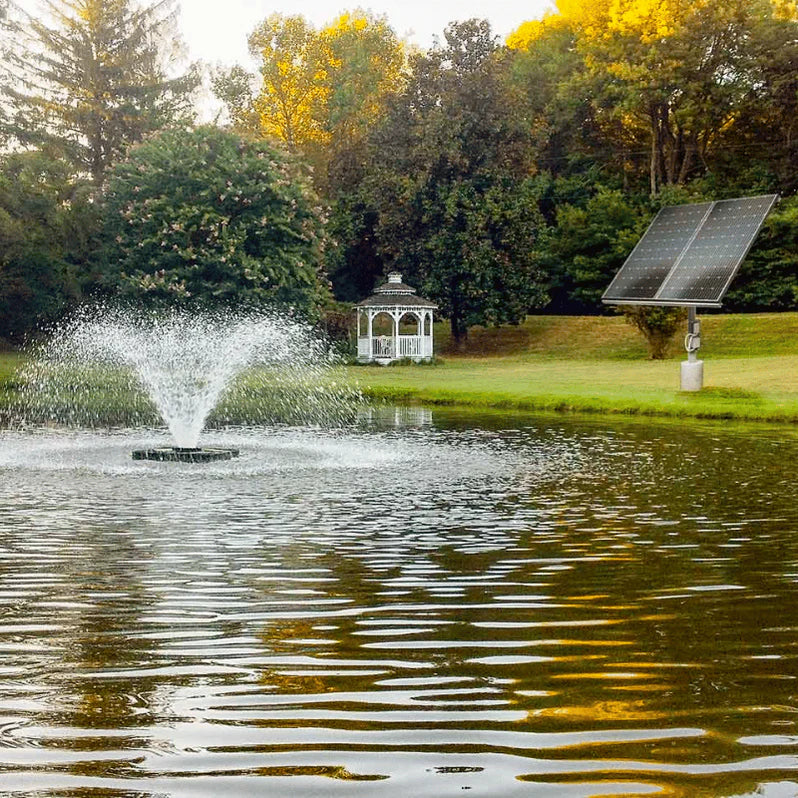

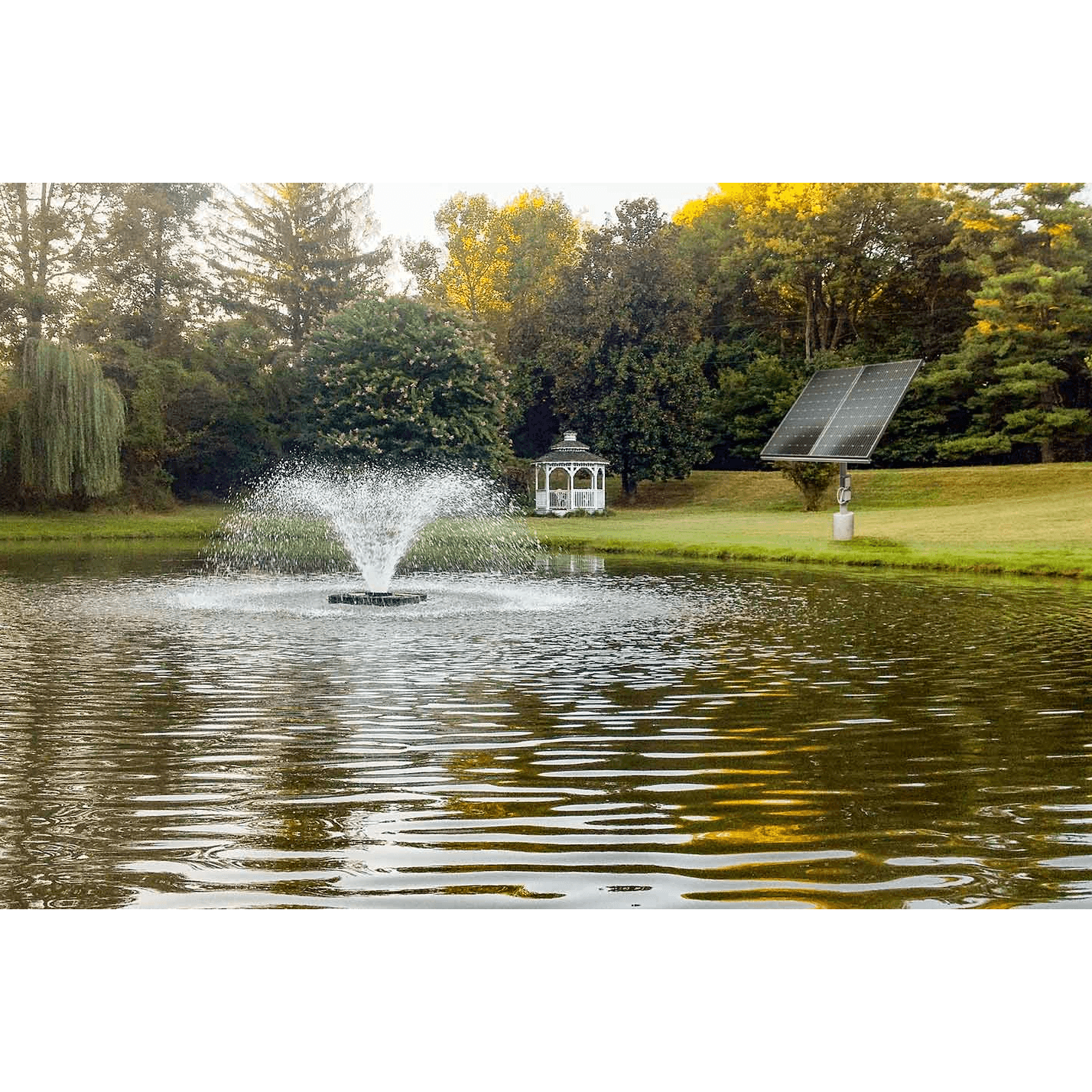

The Solar Powered DA-20 Display Aerator combines the beauty of a fountain with the benefits of eco-friendly aeration, making it the perfect solution for ponds where running electricity is impractical. This system uses solar power to operate efficiently day and night, offering a stunning, cascading trumpet-shaped water spray while enhancing the health of your pond. Ideal for ponds 1/8 acre or larger, it ensures optimal oxygenation and cleaner water.

Features

• Eco-Friendly Operation: Powered entirely by solar energy for cost-saving, sustainable performance.

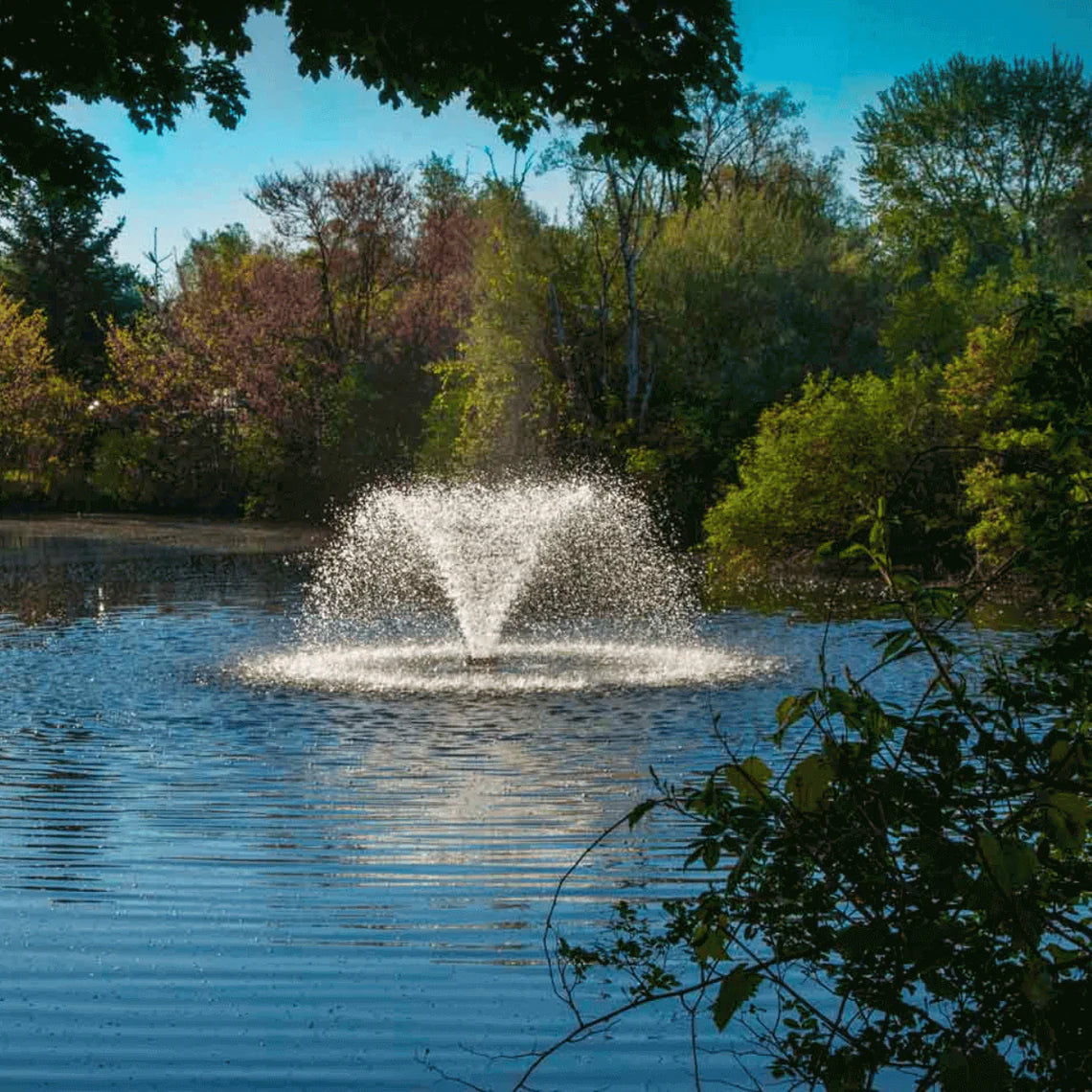

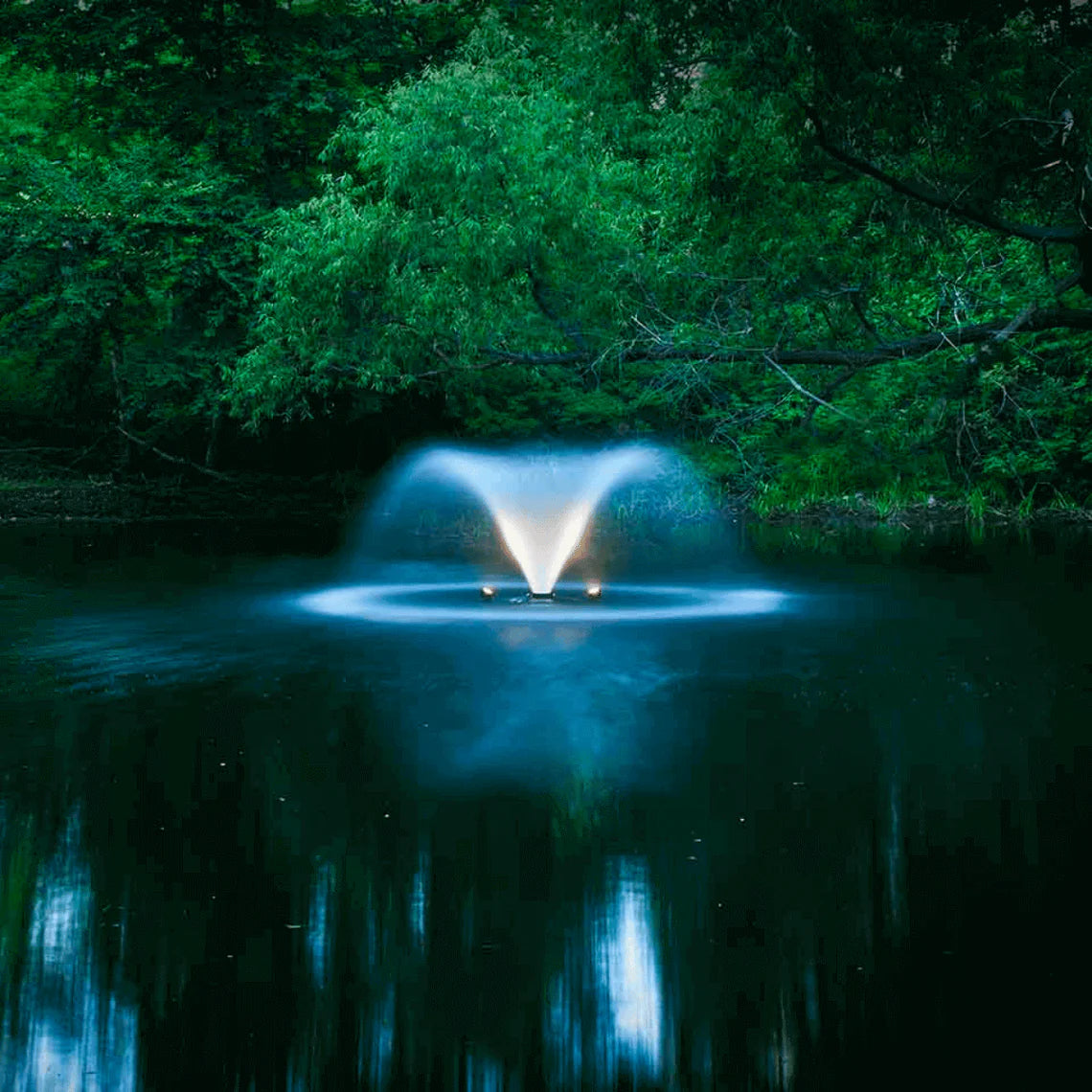

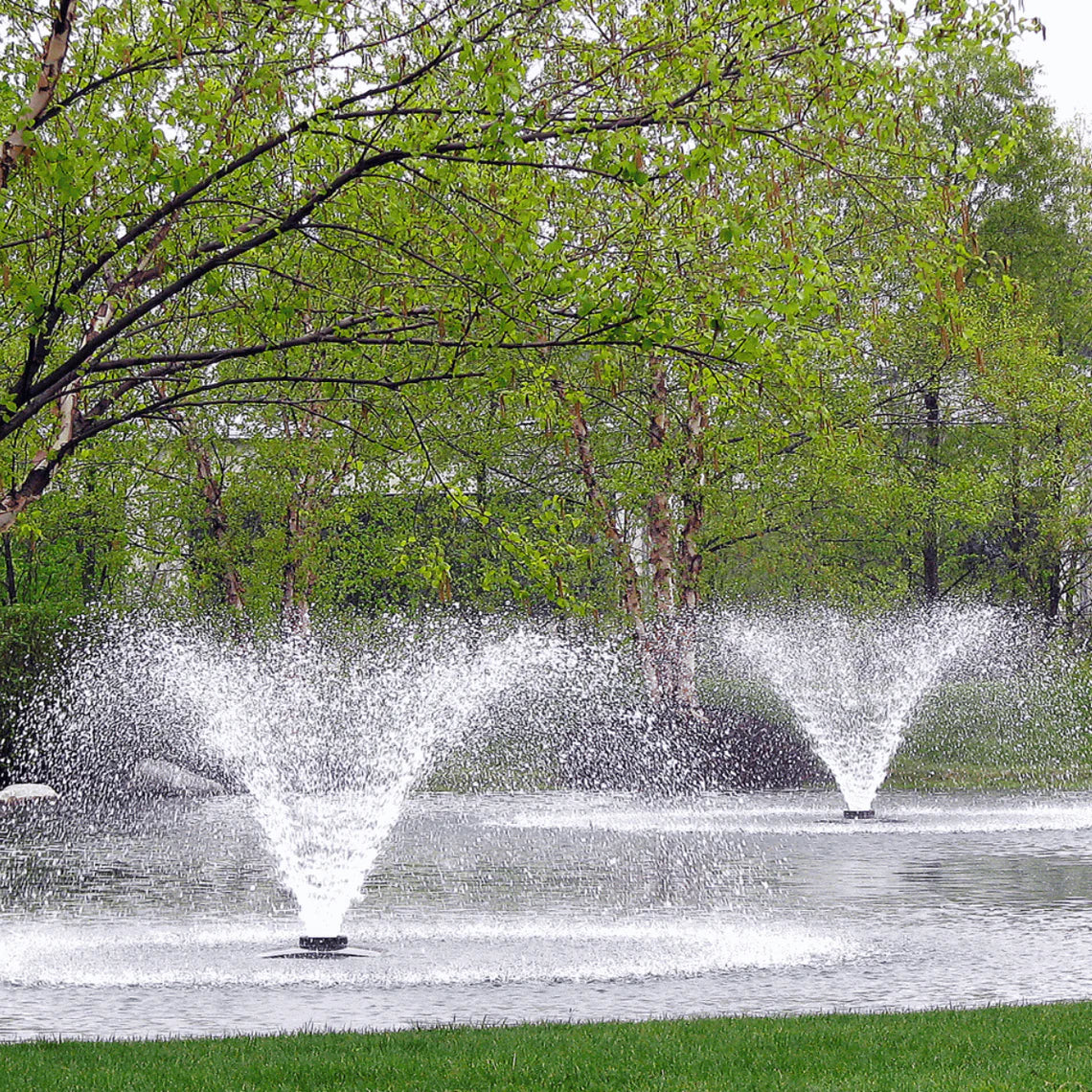

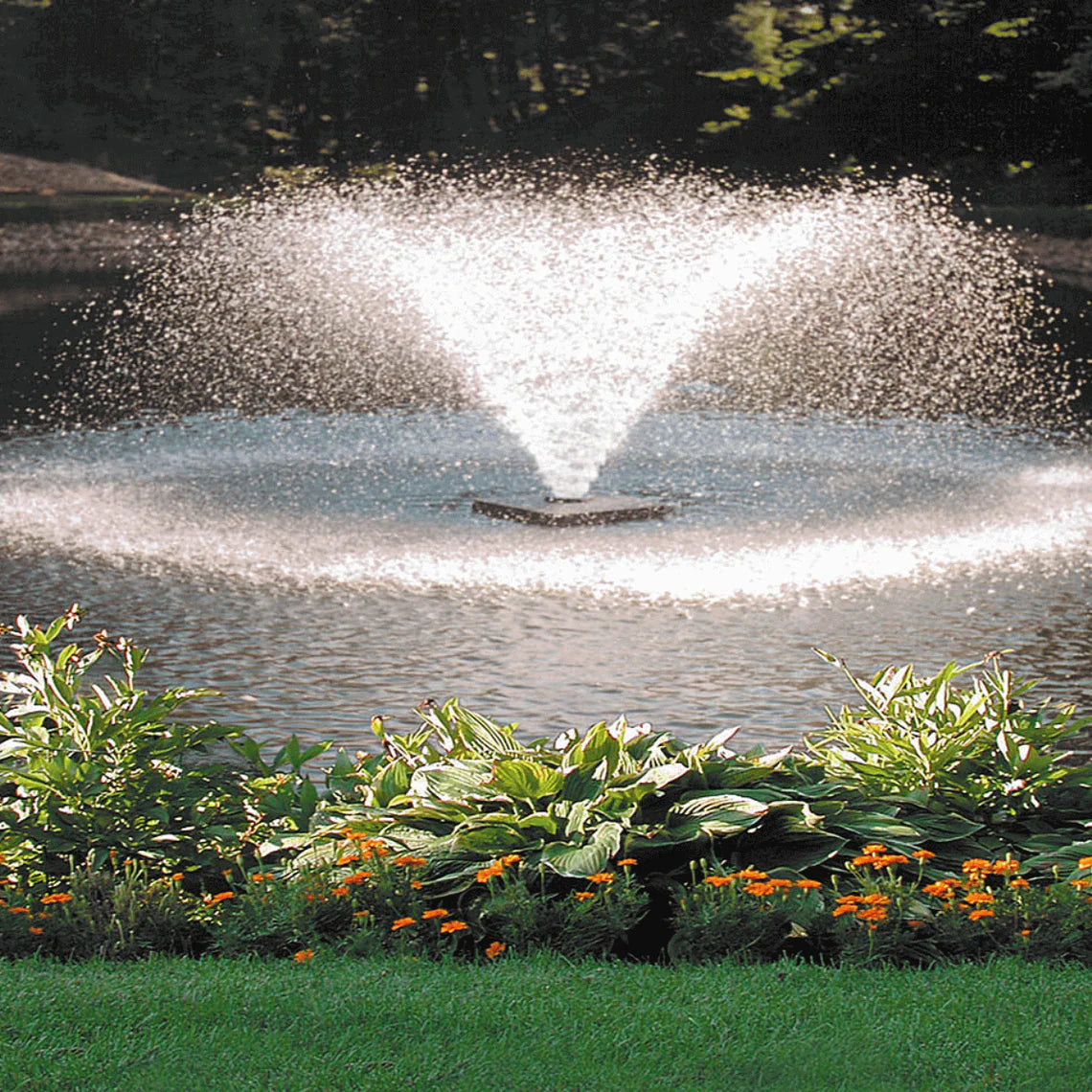

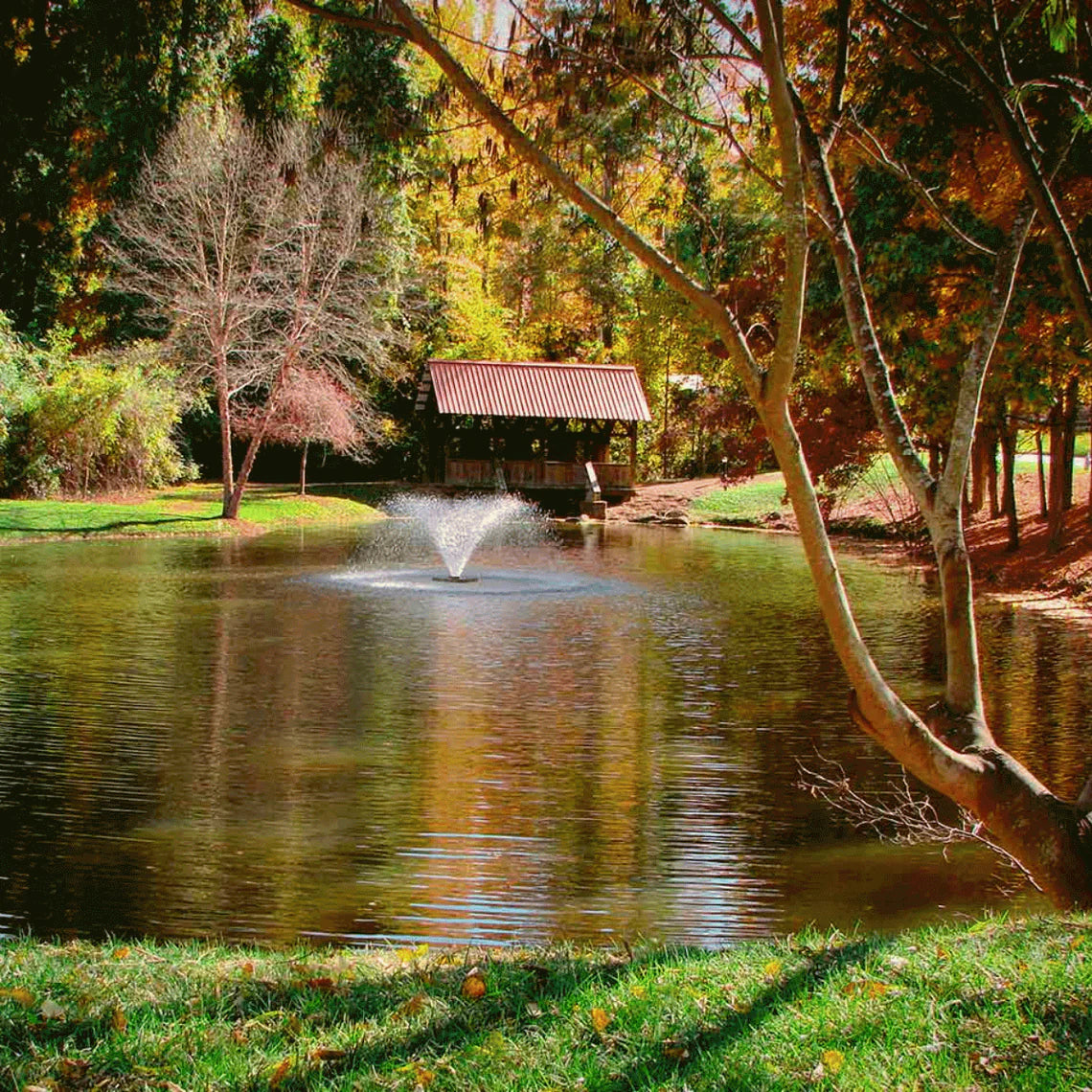

• Beautiful Fountain Display: Produces a cascading, trumpet-shaped spray up to 5 feet tall and 20 feet wide, enhancing any pond.
• Enhanced Water Quality: Delivers up to 300 gallons per minute (four-panel model), ensuring healthy oxygen levels and cleaner water.
• Algae Control: Helps prevent algae buildup by keeping the water circulating and well-oxygenated.
• Insect Repellant: Keeps mosquitoes away by maintaining active water flow.
• Efficient Energy Use: Operates without costly batteries, using a solar PV array to power up gradually in varying sunlight.
• Low Maintenance: No ongoing maintenance needed—just install and enjoy.
• Winter-Proof: Withstands sub-zero conditions, eliminating the need for winterizing procedures.

Specifications

• Pond Compatibility: Ideal for ponds 1/8 acre or larger, with a minimum depth of 32 inches.
• Flow Rate: Up to 200 GPM (2-panel model) or 300 GPM (4-panel model).
• Motor Specs:
  • 2-Panel: ½-hp, 48 volts, 10.3 amps, 370 watts
  • 4-Panel: ¾-hp, 100 volts, 8.6 amps, 810 watts
• Solar Panel Details:

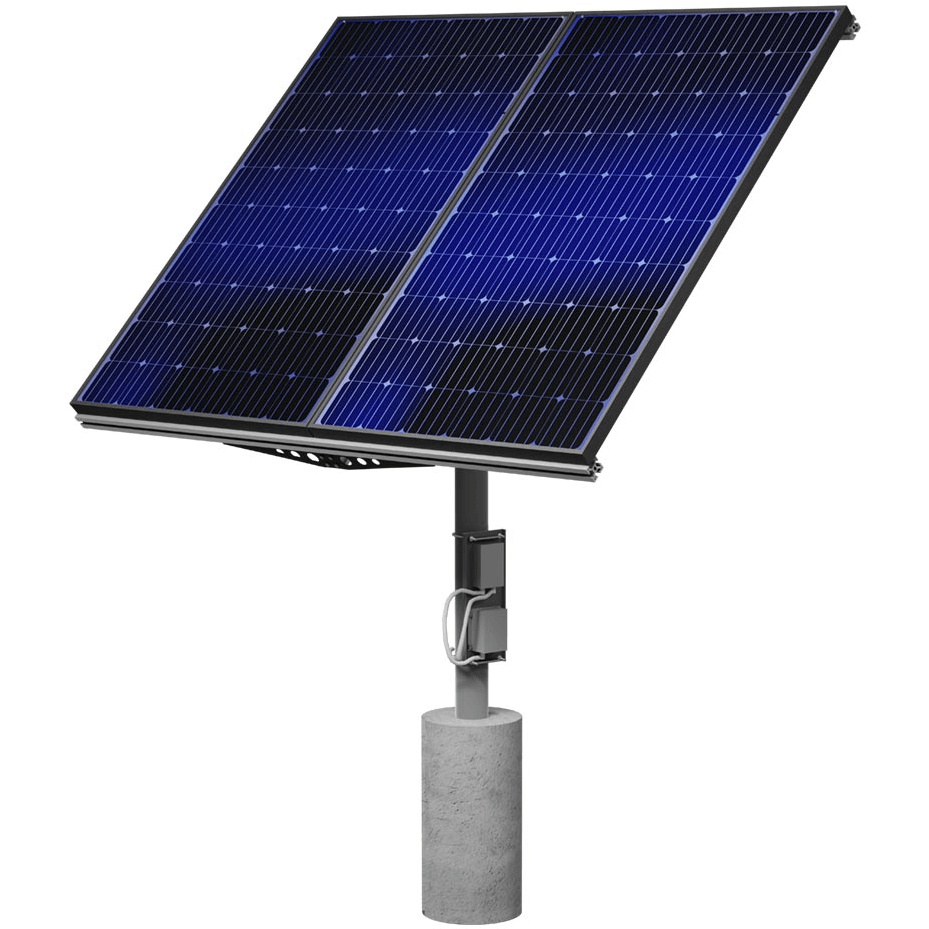

  • 2-Panel: Two 325-watt, 60-cell mono-crystalline solar panels (39” x 65”).
  • 4-Panel: Four 325-watt, 60-cell mono-crystalline solar panels (39” x 65”).
• Cable: 12-gauge, 70 feet long submersible electric cable (longer lengths available).
• Anchoring: Requires two 30-pound weights or concrete blocks (not included).
• Warranty: 5-year motor warranty.

Includes

• DA-20 Display Aerator: The main aeration unit.
• Solar Panels: Two or four high-efficiency solar panels with frame.
• Disconnect Box: For safe operation and disconnection.
• Photon™ Drive Solar Inverter: Converts solar power into usable energy for the aerator.
• All Required Wiring Components: Ready for easy installation.

Note
You will need to provide a vertical pole for the solar panels and concrete footing for the pole, along with two anchor ropes with weights or tethers for the aerator.

Manuals

DA-20 Aerator Assembly

Solar Aerator Assembly (2-Panel Models)

Solar Aerator Assembly (4-Panel Models)

Anchoring Instructions

Solar System Brochure
