Scott Aerator Solar Sub-Surface Pond Aeration System
Authorized Dealer - 5 Year Warranty Included
✓ No Sales Tax (Excl. WY)
✓ Proudly Made in the USA
✓ Ships Free from Holland, MI
✓ Questions? Call Us: (833)-484-1419
System Options
Upgrade Your Pond With The Solar Subsurface Pond Aerator
The Solar Subsurface Pond Aerator is the ultimate eco-friendly solution for maintaining the health and beauty of ponds up to 5 acres. Powered by solar energy, this system enhances water quality by increasing oxygen levels, keeping algae at bay, and supporting a healthy aquatic environment. With a durable, rust-proof design and low-maintenance operation, it’s perfect for remote locations or areas without easy access to electricity.
Features
- Solar Powered: Harnesses clean, renewable solar energy for cost-effective and eco-friendly performance.
- Large Pond Coverage: Effectively aerates ponds up to 5 acres in size.
- Enhanced Durability: Equipped with a digital motor controller, extending system life by up to 300%.
- Noise-Free Operation: Integrated low-frequency sound reduction ensures quiet performance.
- Rust-Proof Enclosure: Fiberglass-reinforced housing guarantees long-lasting durability without rusting.
- Works on Cloudy Days: Delivers reliable aeration even in varying sunlight conditions.
- Eco-Friendly Benefits: Reduces algae, promotes clear water, and supports aquatic health.
Specifications
- Coverage Area: Ponds up to 5 acres.
- Power Source: Solar energy with integrated digital motor controller.
- Enclosure: Fiberglass-reinforced, rust-proof design.
- Warranty: 2-year warranty for reliable peace of mind.
- Installation Time: Quick and straightforward setup in just 15–20 minutes.
Included
-
- High-Efficiency Solar Panels.

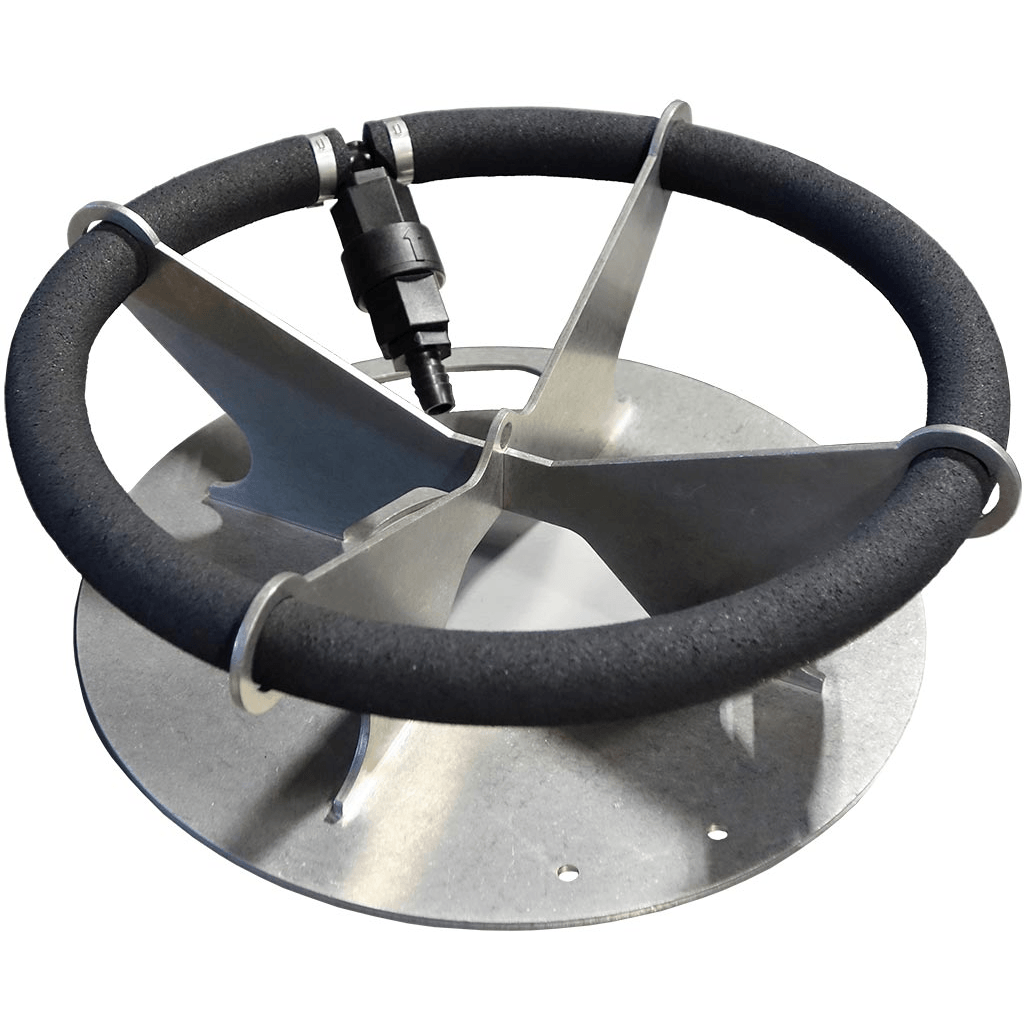

- Self-Weighted Diffusers for consistent placement.
- 3/8" Airline Hose Connection for efficient air delivery.
- Pole Mount Hardware (pole not included).
- Individual Rocker-Style Circuit Breakers for safe operation.
- Brushless Rocking Piston Compressors for reliable performance.
- Automatic Pressure Relief Valve for system protection.
- Stainless Steel Pressure Gauge for easy monitoring.
- Full-Flow Brass Ball Valves for precise control.
- Comprehensive 2-Year Warranty covering all components.
Specifications
| Scott Aerator Solar Sub-Surface Aeration System Complete Set | Scott Aerator Solar XL Sub-Surface Aeration System - Full Unit Set | |
| Unit Model | Solar Sub-Surface Aeration | Solar XL Sub-Surface Aeration |
| Solar Panels | 2x 36-cell, 300-watt, high-efficiency solar panel (39"x65") | 2x 60-cell, 300-watt, high-efficiency solar panel (39"x65") |
| Racking | Fully adjustable top-of-pole, (pole not included) | Fully adjustable top-of-pole, (pole not included) |
| Circuit Protection | Individual rocker-style circuit breakers | Individual rocker-style circuit breakers |
| Compressor Type | High-efficiency, brushless, rocking-piston compressor | 2 High-efficiency, brushless, rocking-piston compressors |
| Max Flow / Depth | 2.5 SCFM / 30'+ / 25 psi | 5 SCFM / 30'+ / 25 psi |
| Over-Pressure | Brass automatic pressure relief valve | Brass automatic pressure relief valve |
| Pressure Gauge | Liquid-filled, stainless steel pressure gauge | Liquid-filled, stainless steel pressure gauge |
| Flow Balancing | 2 Full-flow brass ball valves | 4 Full-flow brass ball valves |
| Sound Level | <65 dB @ 6' | <67 dB @ 6' |
| Air Intake | Washable & reusable slide-in primary filter | Washable & reusable slide-in primary filter |
| Compressor Cooling | 78 CFM automatic active ventilation | 110 CFM automatic active ventilation |
| High-Temp Limit | Yes - with automatic re-start | Yes - with automatic re-start |
| Hose Connections | Two 3/8" x 100 feet airline | Four 3/8" x 100 feet airline |
| Diffusers | Two self-weighted diffusers | Four self-weighted diffusers |
| Diffuser Types | Works with any style diffuser | Works with any style diffuser |
| Enclosure | ULTRAGUARD™ Fiberglass Reinforced Polyester Compression Molded Non-Corrosive/ Non-Conductive Continuous, Poured-in-Place Gasket 316 Stainless Steel Hardware | ULTRAGUARD™ Fiberglass Reinforced Polyester Compression Molded Non-Corrosive/ Non-Conductive Continuous, Poured-in-Place Gasket 316 Stainless Steel Hardware |
| Mounting Type | Ground mount | Ground mount |
| Steel Components | Formed carbon steel with polyester powder coat | Formed carbon steel with polyester powder coat |
| Aluminum Rails | 6360 T6 Anodized, .2-.25mil Thickness | 6360 T6 Anodized, .2-.25mil Thickness |
| Codes & Standards | Structural, ASTM A36, A53 Plating ASTM B633 | Structural, ASTM A36, A53 Plating ASTM B633 |
| Enclosure Weight | 50 lbs | 66 lbs |
| Coverage | Up to 2 acres | Up to 5 acres |
| Warranty | 2-Year warranty on all components | 2-Year warranty on all components |
Manuals
Scott Aerator FAQ's
Scott Aerator products include various cable lengths. For Display Aerators and fountains with a ½‑hp motor, you get a 70‑foot cable, while 1½‑hp models include 100 feet. The Aquasweep dock mount model comes with 50 feet, and the floating version has 35 feet. De‑icer units are supplied with 25 feet on dock mount and slinger models, and 35 feet on the floating model. Light kits (both two‑light and four‑light) include 100 feet of cable, and longer options are available upon request.
Always install your product using a GFCI outlet and disconnect the power whenever swimmers are present to ensure maximum safety.
Aerators are mainly used to control algae, add oxygen, and reduce insect breeding, while fountains are ideal if you’re looking for visual appeal and sound. Choose based on whether your priority is water quality or aesthetics.
Yes, Scott Aerator fountain and aerator products are built for continuous, 24/7 operation, except for the solar-powered models, which are designed for daytime use only.
A unit with a ½‑hp motor typically costs about 8 to 10 cents per hour to run. For 1½‑hp units operating on 230‑volt power, the cost is around 12 cents per hour.
Orders are generally shipped within two to three business days via UPS from our Michigan facility. Delivery times can vary slightly during peak periods, but most orders arrive within a few days.
Scott Aerator products are warranted for five years against motor defects under normal use, and all other components carry a one‑year warranty from the date of purchase. These warranties are valid only for the original owner and are non‑transferable.
Generally, no special permit is needed. However, if you’re uncertain, it’s best to check with your state’s Department of Natural Resources or your local regulatory agency.
Yes, we offer lighting options including LED Night Glo sets and RGB color‑changing kits that can be added at the time of purchase or later.
Installation is simple. Under the flotation device of your unit, you’ll find two eye bolts. Attach nylon ropes (not provided) to these bolts and secure them with a concrete block or boat anchor, placing the weighted ends at least 20 feet apart, or tie them off on shore. If you need further help, please contact us.
Maintenance is minimal. Scott Aerator oil‑free, self‑contained motors and pumps only require an occasional rinse with a garden hose or pressure washer. If you run your unit year‑round, a thorough cleaning every three years is recommended.
All Scott Aerator products are engineered for both fresh and salt water environments, ensuring they perform reliably regardless of water type.
Scott Aerator products are designed to withstand winter conditions without the need for extensive winterizing. Simply leave the unit in the water, turn off the power during winter, and reactivate it once the water thaws. If your unit includes an optional light set, remove the lights before ice forms. We do recommend a full cleaning every three years.
For ½‑hp aerators and fountains, the minimum water depth is 28 inches. For 1½‑hp aerators, at least 38 inches is recommended, and 1½‑hp fountains should be placed in water that’s no less than 42 inches deep.
Scott Aerator products work best in ponds that are 1/8th of an acre or larger.
Typically, 1½‑hp aerators can move up to 600 gallons per minute (gpm) and ½‑hp models up to 400 gpm. For fountains, 1½‑hp units move around 80 gpm, while ½‑hp units circulate about 60 gpm.
Products with a ½‑hp, 115‑volt motor draw roughly 10 amps, while the 230‑volt models draw about 5 amps. The 1½‑hp, 230‑volt units draw approximately 10.6 amps when running.
A 230‑volt motor uses only half the amperage of a 115‑volt unit, making it more energy efficient. Additionally, 230‑volt systems can accommodate longer power cords without compromising performance.
