Vertex AerationJet Floating Pond Fountain

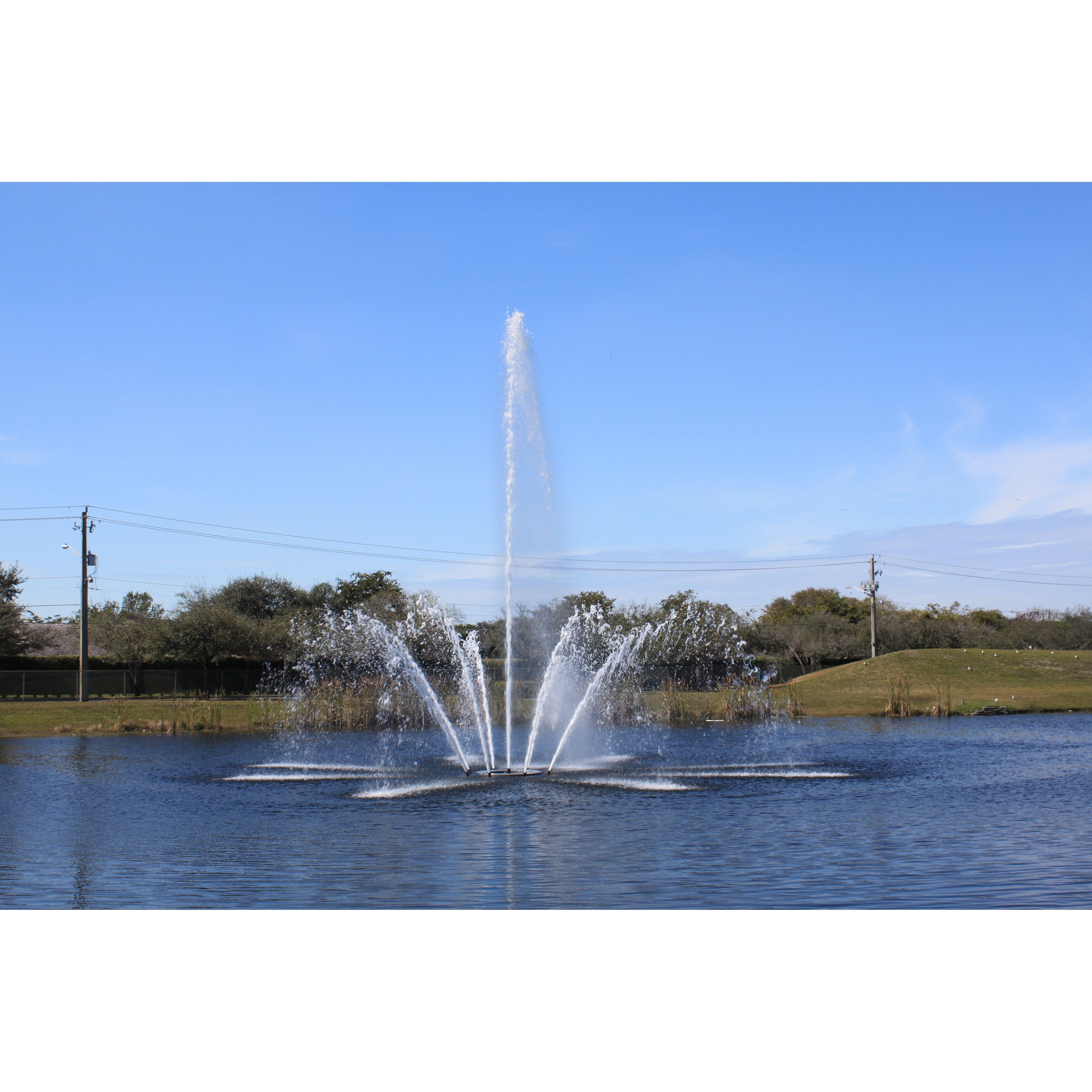

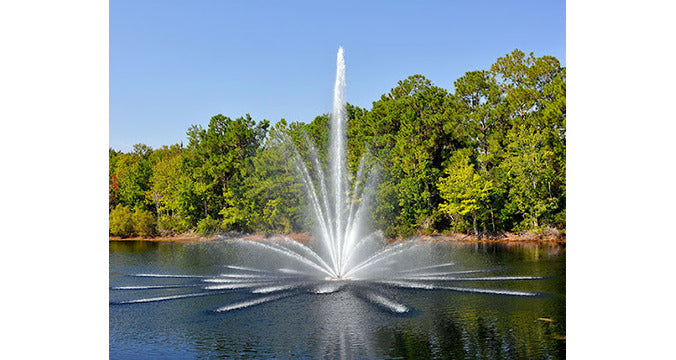

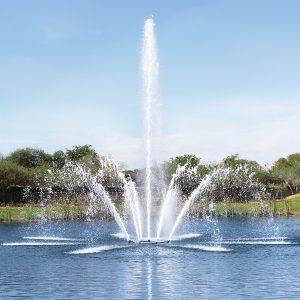

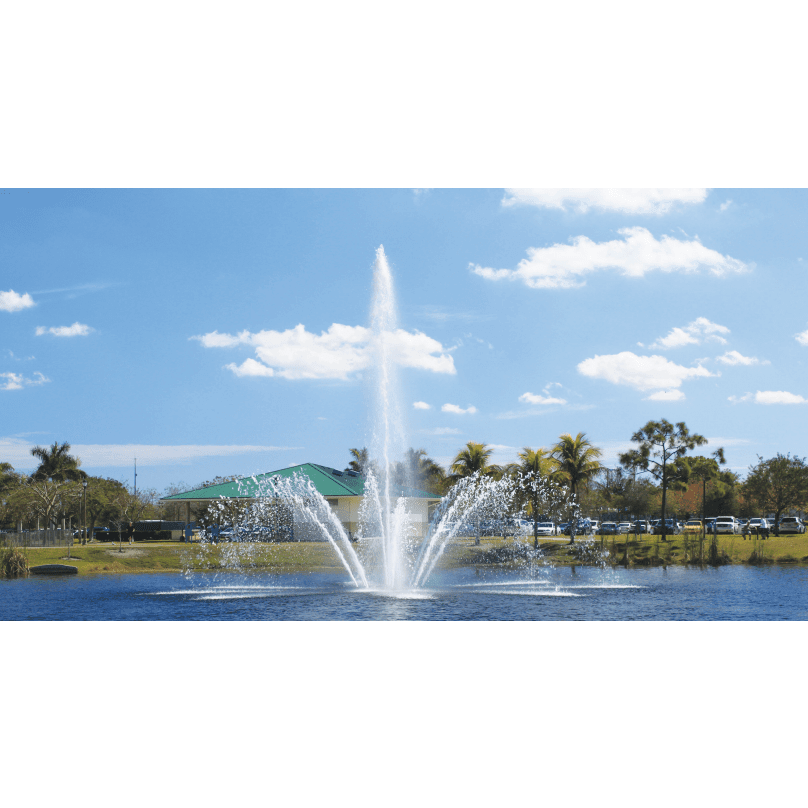

Transform your pond or lake into a striking focal point with the Vertex AerationJet Floating Pond Fountain. Designed to deliver towering water jets reaching up to 50 feet high, this fountain creates an awe-inspiring display with a 60-foot diameter. Powered by a high-performance submersible turbine pump and equipped with a UL-listed control panel, it ensures reliable operation. Meticulously crafted for durability, it combines advanced aeration technology with energy-efficient design, making it ideal for both visual appeal and aquatic health.
Features
- Majestic Water Display: Soaring jets reach up to 50 feet high and span 60 feet in diameter, offering a stunning visual impact.
- Superior Wind Resistance: Built to withstand strong winds, ensuring uninterrupted performance.
- Vital Pond Aeration: Promotes healthy aquatic life by circulating oxygen throughout the pond.
- Durable Construction: Crafted with corrosion-resistant materials and a robust float system for lasting reliability.
- Easy Installation: User-friendly design and hassle-free setup with all necessary components.
- Customizable Options: Available in various horsepower configurations, with LED lighting packages for added versatility.
- Energy Efficient: Optimizes performance while minimizing energy consumption.
- UL Listed Control Panel: Certified control system ensures safety and reliability.
Warranty
- 4-Year Warranty: Covers core components like display heads and pumps/motors, ensuring long-term reliability.
- 2-Year Warranty: Includes LED lighting components for brighter, energy-efficient illumination.
- 1-Year Warranty: Protects the control panel, designed with Class A GFCI protection and housed in a weatherproof steel enclosure.
Includes
- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Display Head/Nozzle
- Stainless Steel Intake Screen
- UL Listed Control Panel
- STW-A Rated Submersible Cable
- 140 Lumen/Watt Stainless Steel Light Fixtures
- Comprehensive Warranty

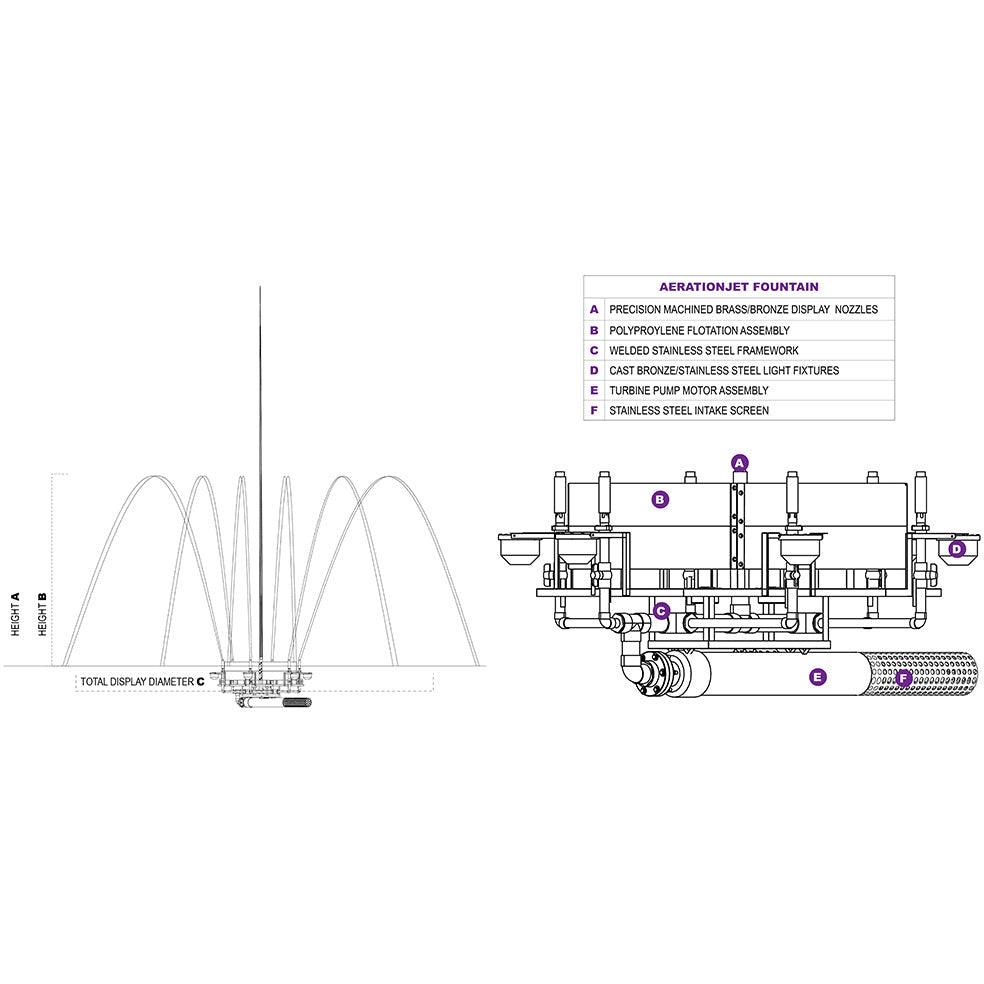

Technical Specifications
| 10 HP Unit | 15 HP Unit | 20 HP Unit | 30 HP Unit | |
| Minimum Operating Depth | 6' | 7' | 7' | 8' |
| Center Height (A) | 30' | 35' | 40' | 45' |
| Side Height (B) | 15' | 20' | 20' | 25' |
| Spray Diameter (C) | 30' | 33' | 35' | 40' |
| No. of Side Jets | 6 | 8 | 8 | 8 |
| LED Lights | 9 | 10 | 11 | 11 |
| Total Wattage | 387W | 430W | 473W | 473W |
| AMP Draw | 4.5 | 5 | 5.5 | 5.5 |
| Available Phase | 1 & 3 | 1 & 3 | 3 | 3 |
| 1 Phase (Volts) | 230 | 230 | - | - |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 230 | 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
