Vertex Air 1 Plus XL2 Pond Aeration System

Vertex Air 1 Plus XL2 Pond Aeration System

The Vertex Air 1 Plus XL2 Aeration System is engineered to aerate ponds and lakes spanning 1 to 2 acres, depending on factors such as shape, slope, and oxygen demand. Designed for efficiency and durability, this system harnesses cutting-edge Vertex technology to enhance water quality and circulation. With a Brookwood SafeStart compressor housed in a weather-resistant aluminum cabinet, the Air 1 Plus XL2 ensures a reliable performance. Its bottom-mounted CoActive AirStations utilize MicronBubble technology to lift bottom water to the surface, promoting oxygen absorption and expelling harmful gases effectively.

Features

• Advanced diffuser membranes prevent clogging, even in challenging water conditions.
• MicronBubble technology generates superfine bubbles for improved oxygen transfer and circulation.
• Proven durability with over 50,000 diffusers installed since 2006 without a single failure.

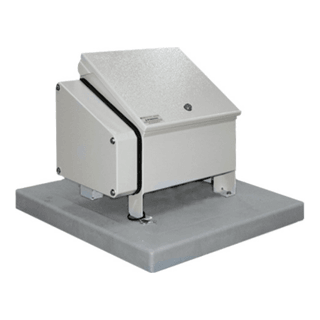

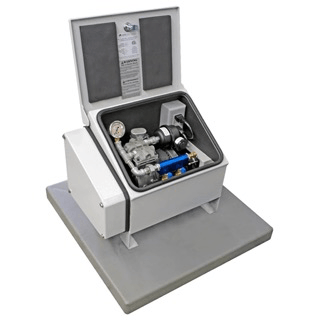

• Rugged aluminum cabinet with a locking lid, lifetime rustproof guarantee, and optional sound-reduction kit.
• Quiet operation with decibel readings as low as 47 dB when equipped with the sound kit.
• Safety-certified with GFCI and ETL ratings.

Specifications

• Horsepower: 1/3 HP
• Amperage: 3.9 Amps
• Voltage: 115V (230V optional)
• Airflow: 2.5 CFM
• Maximum Depth: 20 feet
• Lifting Rate: 6,700 GPM
• Operating Cost: $40.74 per month (24/7 at $0.1245 per kWh)

Noise Levels:

• 5' from cabinet: 59 dB (55 dB with sound kit)
• 15' from cabinet: 53 dB (49 dB with sound kit)
• 30' from cabinet: 51 dB (47 dB with sound kit)

Maintenance

To maintain peak performance:

• Replace the air filter element every 3-6 months to prevent debris from reaching the compressor.
• Perform a compressor maintenance/rebuild every 1-3 years for optimal functionality.

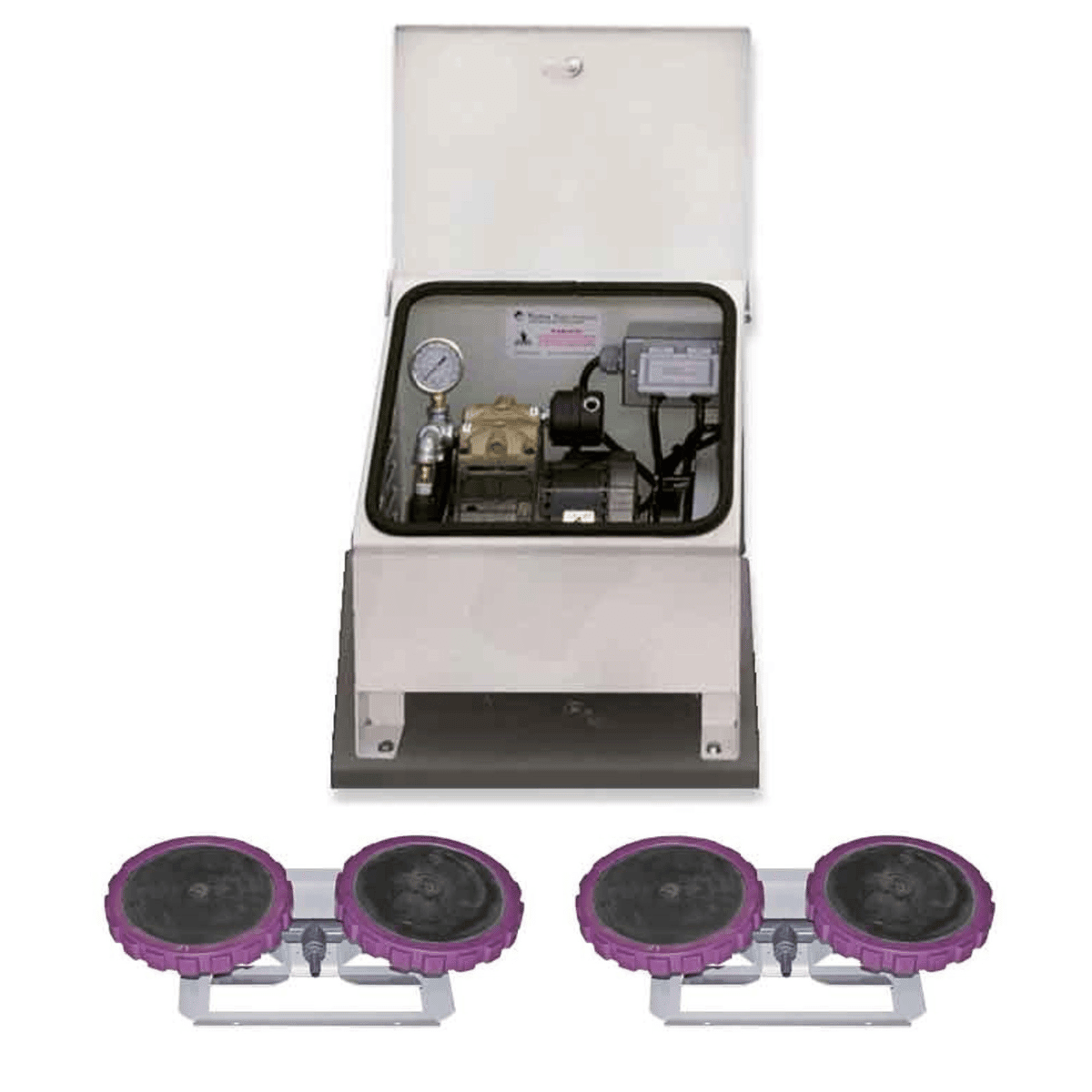

Includes

• Two XL2 AirStations
• One 1/3 HP Brookwood Compressor
• QuietAir Cabinet with cooling fan
• Weighted airline available as an optional add-on
• Comprehensive 3-year warranty
