Vertex Air 2 XL2 Pond Aeration System

The Vertex Air 1 XL2 Aeration System is designed to efficiently aerate round ponds up to 2 acres in size and 45 feet deep, depending on slope, shape, and oxygen demand. This advanced system uses millions of microscopic bubbles to lift bottom water to the surface, promoting oxygen absorption and thorough circulation of the entire water column. Available in both 115V and 230V options, it delivers exceptional performance for optimal water quality.

Features

• Circulates up to 5,100 gallons per minute, effectively breaking through stratification layers.
• Boosts beneficial bacteria growth for a healthier aquatic ecosystem.
• Reduces nutrient levels to minimize algae growth and pond sediment.
• Improves fish habitats by expanding oxygenated zones and preventing low-oxygen fish kills.
• Mitigates foul odors and limits mosquito and midge insect hatches.
• Durable, clog-resistant EPDM diffusers with self-cleaning technology.
• Operates continuously with thermal overload protection for 24/7 use.
• Powder-coated aluminum cabinet with a ventilated grill and optional sound-reduction kit for quiet operation.

Specifications

• Horsepower: 1/3 HP
• Voltage: 115V or 230V
• Airflow: 2.5 CFM
• Pumping Rate: 5,100 GPM
• Cooling Fan: 140 CFM
• Tubing: 3/8" I.D. self-weighted tubing (upgrade to 0.58" I.D. tubing for runs over 300 feet)
• Protection: Class "A" GFCI for compressor and fan circuits

Maintenance

• Regularly replace air filter elements every 3-6 months to ensure efficient compressor operation.
• Complete compressor rebuild every 1-3 years for optimal performance.

Warranty

• Compressor: 3 years
• AirStation/Diffuser: 5 years
• Aluminum Cabinet: Lifetime warranty against rust

Includes

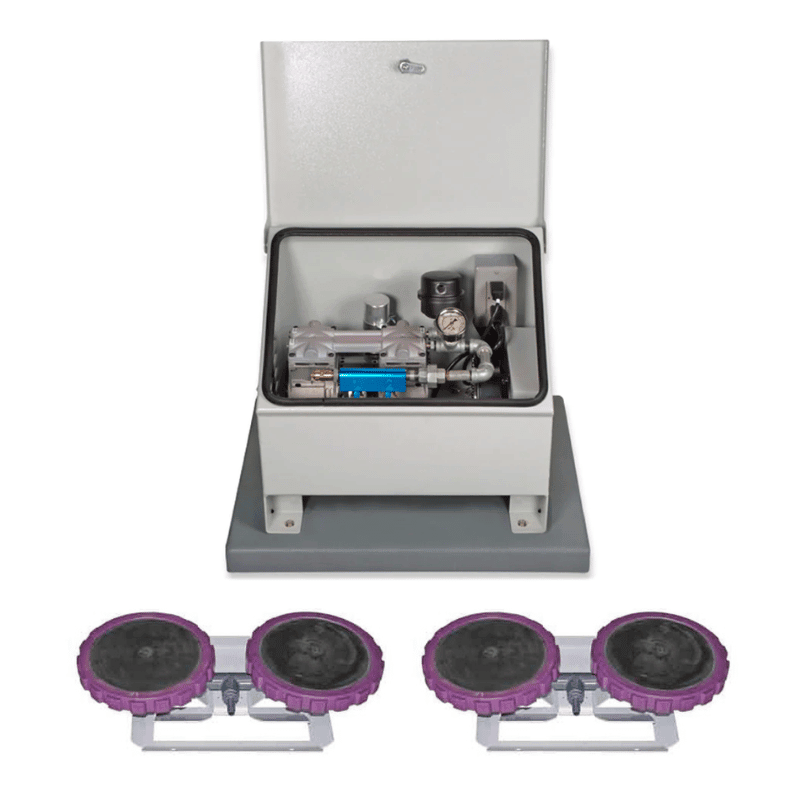

• 1/3 HP Brookwood piston compressor (115V or 230V)
• XL2 CoActive AirStation with dual-head, self-cleaning diffusers

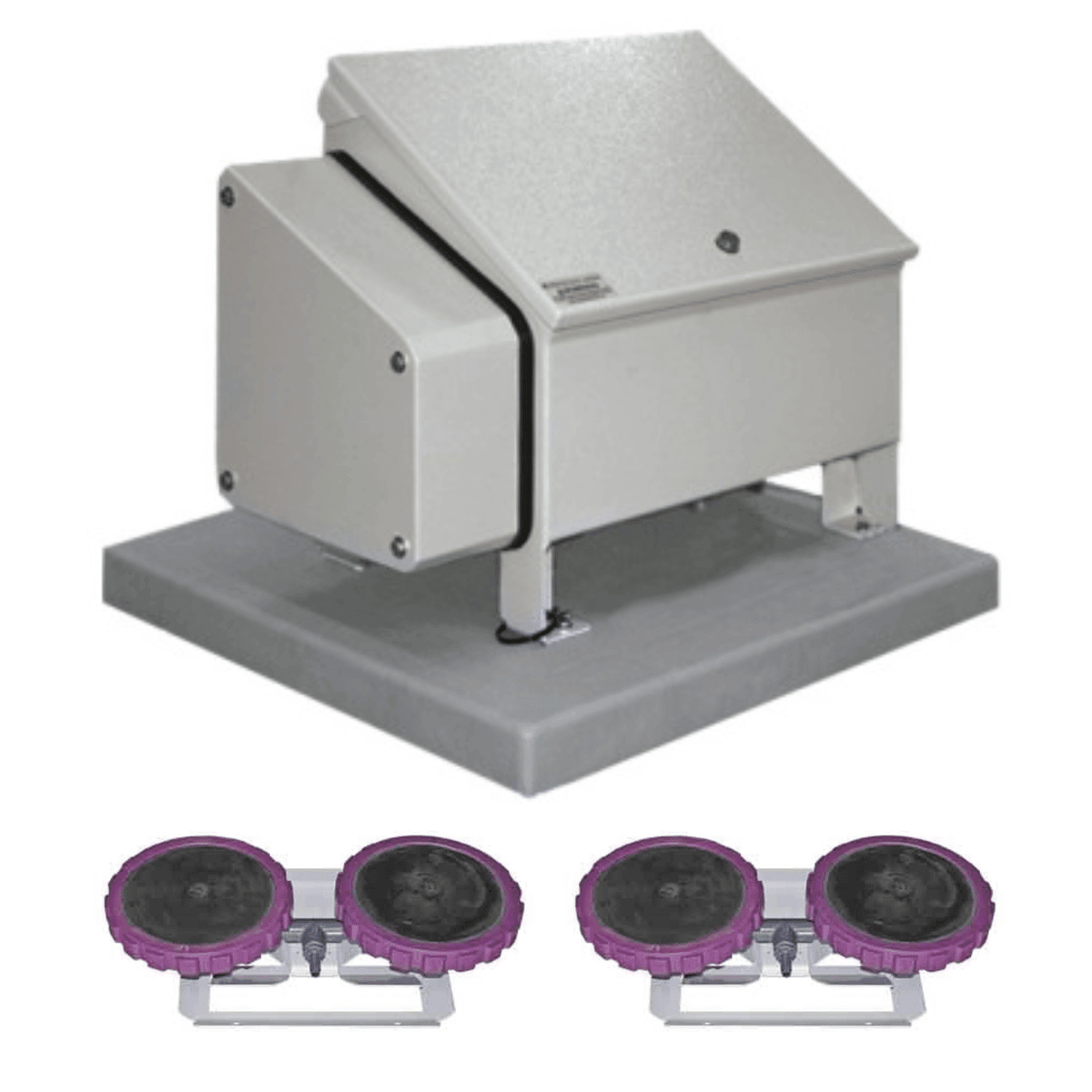

• Powder-coated aluminum cabinet with a ventilated grill
• Heavy-duty cabinet mounting pad

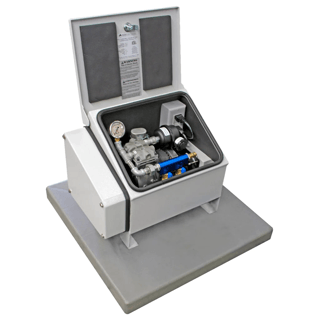

• Optional sound-reduction kit for ultra-quiet operation
