Vertex Air 3 XL2 Pond Aeration System

Vertex Air 3 XL2 Pond Aeration System

The Vertex Air 3 XL2 Aeration System is expertly designed to aerate ponds and lakes up to 3-4 acres in size and 45 feet deep, depending on oxygen demand, slope, and shape. By utilizing millions of tiny bubbles, this system enhances water circulation and promotes oxygen absorption while effectively mixing the water column. It’s available in both 115V and 230V configurations for added flexibility.

Features

• Circulates up to 11,400 gallons per minute, breaking through stratification layers with ease.
• Encourages the growth of beneficial bacteria for healthier ecosystems.
• Reduces nutrient levels to combat algae and sediment buildup.
• Expands oxygen-rich zones to improve fish habitats and prevent fish kills.
• Minimizes foul odors and limits mosquito and midge populations.
• Durable EPDM diffuser membranes with self-cleaning technology for clog-resistant operation.
• Thermal overload protection ensures reliable 24/7 performance.
• Powder-coated aluminum cabinet with ventilated grill and optional sound-reduction kit.

Specifications

• Horsepower: 1/2 HP (0.37 kW)
• Voltage: 115V or 230V
• Airflow: 4.3 CFM
• Pumping Rate: 11,400 GPM
• Cooling Fan: 290 CFM
• Tubing: 3/8" I.D. self-weighted tubing (upgrade to 0.58" I.D. for runs over 300 feet)
• Protection: Class "A" GFCI for compressor and fan circuits

Maintenance

• Replace air filter elements every 3-6 months to maintain efficiency.
• Perform a compressor rebuild every 1-3 years to optimize system performance.

Warranty

• Compressor: 3 years
• AirStation/Diffuser: 5 years
• Aluminum Cabinet: Lifetime warranty against rust

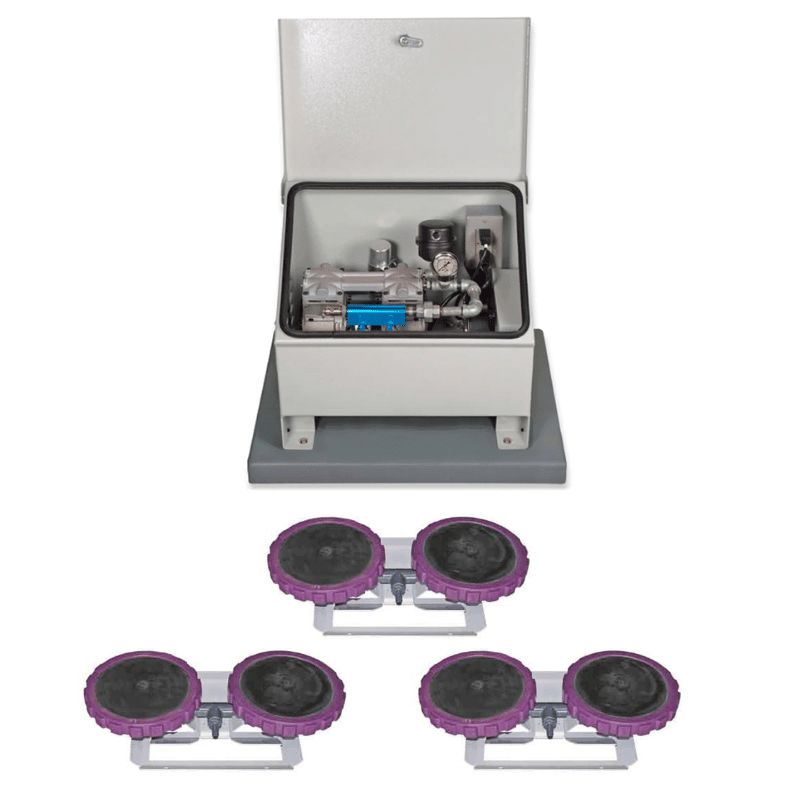

Includes

• 1/2 HP Dual Piston Brookwood Compressor
• Three XL2 CoActive AirStations with dual-head, self-cleaning diffusers
• Powder-coated aluminum cabinet with ventilated grill
• Heavy-duty cabinet mounting pad
• Three-valved aluminum control manifold

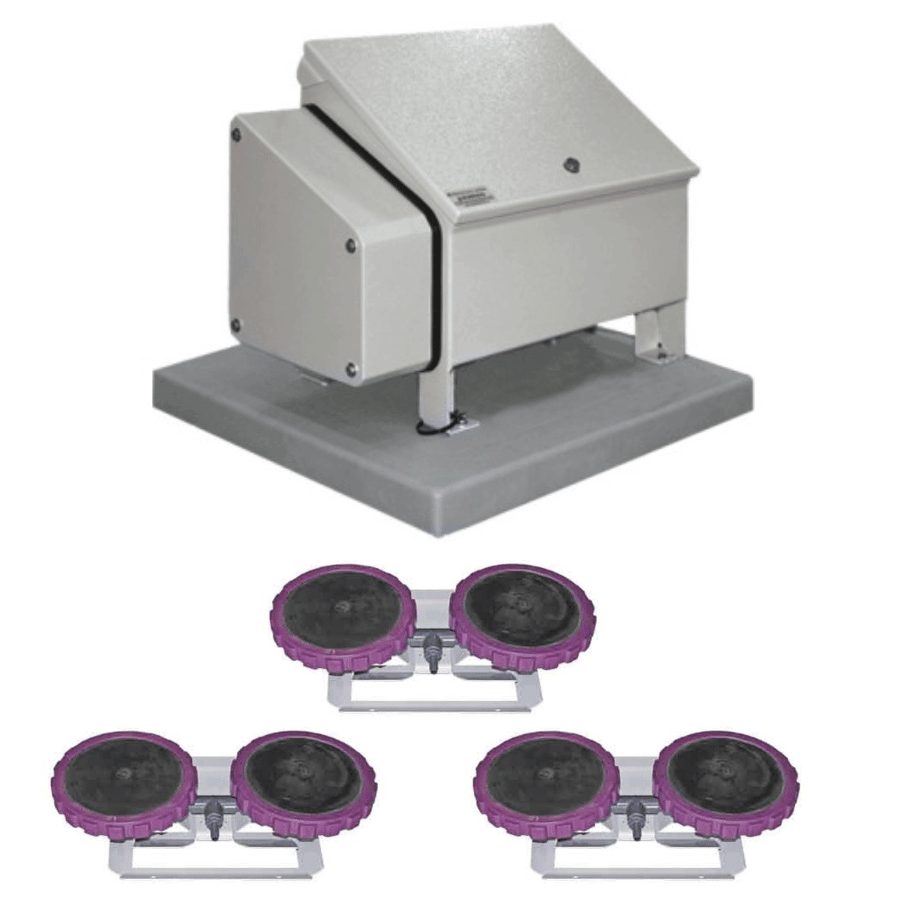

• Optional sound-reduction kit for ultra-quiet operation
