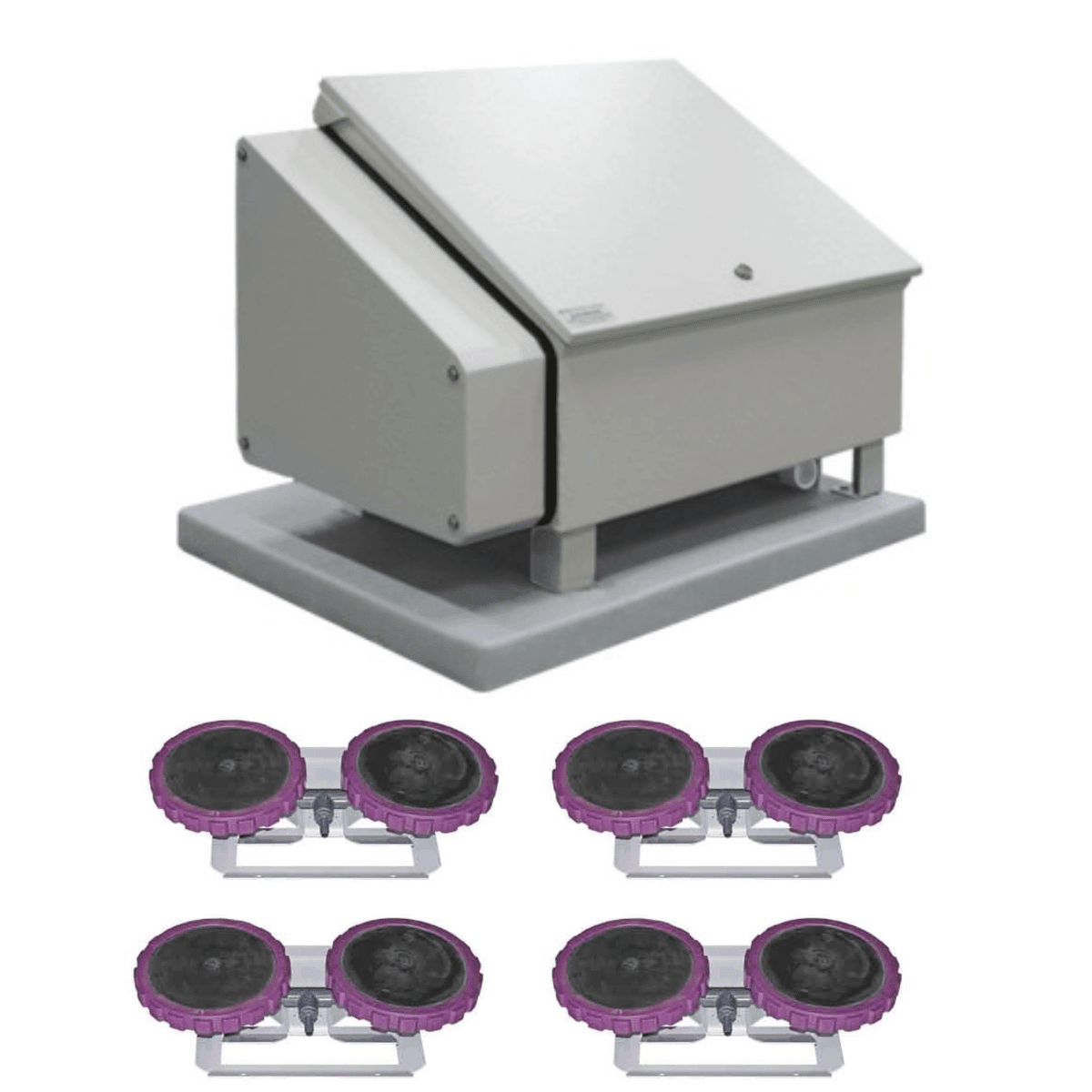

Vertex Air 4 XL2 Pond Aeration System
The Vertex Air 4 XL2 Aeration System is engineered to aerate large ponds and lakes spanning 4-7 acres and up to 45 feet deep, depending on slope, shape, and oxygen demand. By generating millions of fine bubbles, this system enhances water circulation and promotes oxygen absorption, ensuring a healthier and well-mixed water column. Available in both 115V and 230V models, this system is ideal for larger aquatic ecosystems.
Features
- Circulates up to 19,300 gallons per minute, easily breaking through stratification layers.
- Encourages the growth of beneficial bacteria to create a balanced ecosystem.
- Lowers nutrient levels to reduce algae growth and sediment accumulation.
- Expands oxygenated zones, improving fish habitats and preventing fish kills.
- Reduces unpleasant odors and limits mosquito and midge infestations.
- Durable EPDM diffuser membranes with self-cleaning, clog-resistant technology.
- Operates 24/7 with reliable thermal overload protection.
- Powder-coated aluminum cabinet with stamped ventilator grill and optional sound-reduction kit.
Specifications
- Horsepower: Two 1/2 HP Dual Piston Compressors
- Voltage: 115V or 230V
- Airflow: 6 CFM
- Pumping Rate: 19,300 GPM
- Cooling Fan: Two 290 CFM fans
- Tubing: 3/8" I.D. self-weighted tubing (upgrade to 0.58" I.D. for runs over 300 feet)
- Protection: Class "A" GFCI for compressor and fan circuits
Maintenance
- Replace air filter elements every 3-6 months to ensure peak performance.
- Perform a compressor rebuild every 1-3 years for optimal functionality.
Warranty
- Compressor: 3 years
- AirStation/Diffuser: 5 years
- Aluminum Cabinet: Lifetime warranty against rust

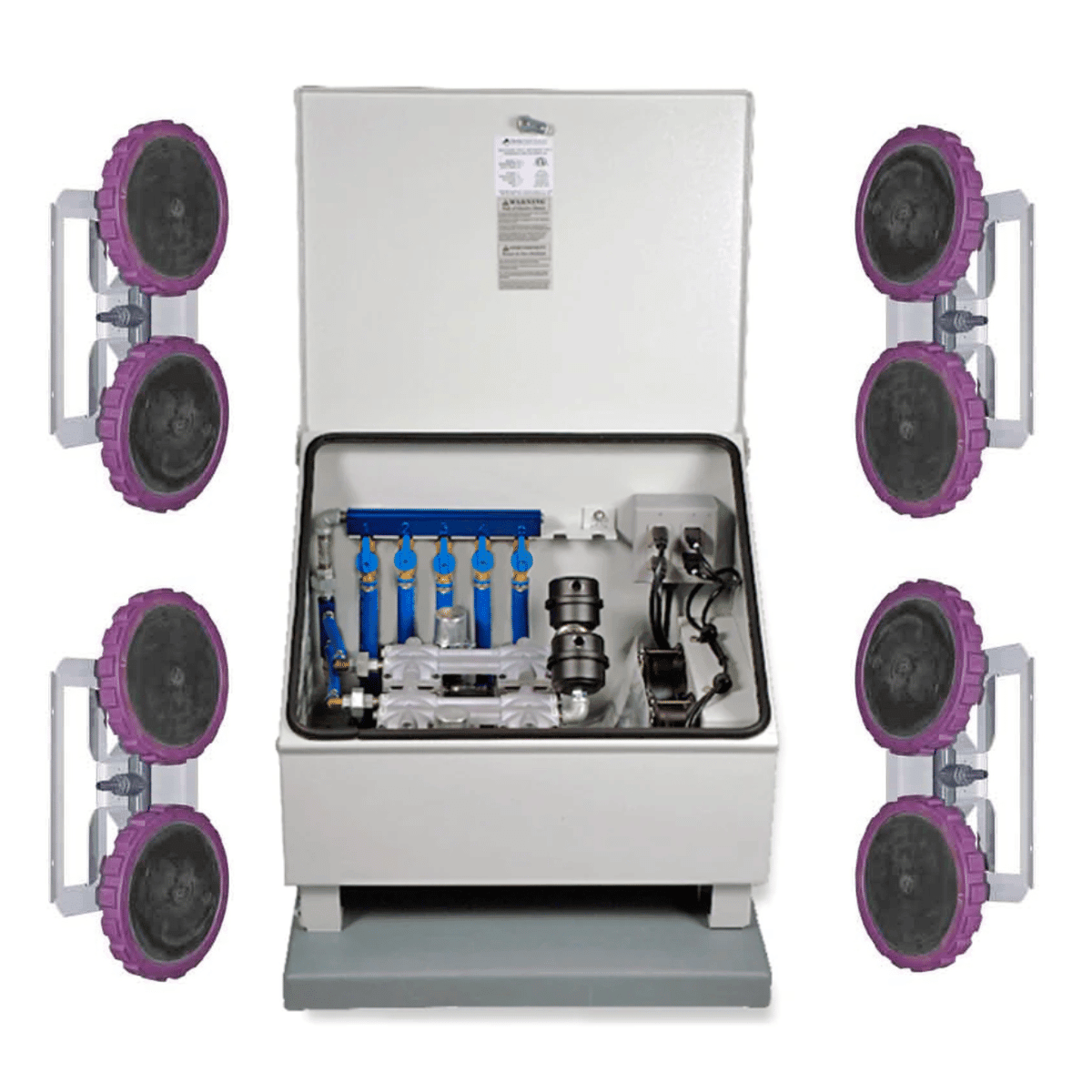

Includes
- Two 1/2 HP Dual Piston Brookwood Compressors
- Four XL2 CoActive AirStations with dual-head, self-cleaning diffusers
- Powder-coated aluminum cabinet with stamped ventilator grill
- Heavy-duty cabinet mounting pad
- Four-valved aluminum control manifold
- Optional sound-reduction kit for ultra-quiet operation
