Vertex Air 5 XL2 Pond Aeration System
The Vertex Air 5 XL2 Aeration System is designed to deliver outstanding performance for large ponds or lakes, covering 5-7 acres and up to 45 feet deep. By generating millions of fine bubbles, it enhances water circulation and boosts oxygen absorption, creating a balanced and healthy aquatic ecosystem. This system is available in both 115V and 230V configurations, making it versatile for various setups.
Features
- Circulates up to 21,000 gallons per minute for exceptional water movement.
- Easily breaks through stratification layers to maintain water clarity.
- Promotes beneficial bacteria growth for a healthier ecosystem.
- Prevents fish kills by maintaining optimal oxygen levels.
- Reduces nutrient levels and curbs algae growth.
- Decreases bottom sediment accumulation and improves water quality.
- Expands oxygen-rich zones to support better fish habitats.
- Mitigates midge and mosquito infestations.
- Eliminates unpleasant odors from dissolved gases.
- Durable, self-cleaning EPDM diffuser membranes prevent clogging.
- Operates 24/7 with thermal overload protection for consistent performance.
- Optional sound-reduction kits for ultra-quiet operation.
Specifications
- Horsepower: Two 1/2 HP Dual Piston Compressors
- Voltage: 115V or 230V
- Airflow: 6 CFM
- Pumping Rate: 21,000 GPM
- Cooling Fans: Two 290 CFM fans
- Tubing: 3/8" I.D. self-weighted tubing (upgrade to 0.58" I.D. for runs over 300 feet)
- Protection: Class "A" GFCI for compressor and fan circuits
Maintenance
- Replace air filter elements every 3-6 months to maintain optimal operation.
- Perform a compressor rebuild every 1-3 years to extend the life of the system.
Warranty
- Compressor: 3 years
- AirStation/Diffuser: 5 years
- Aluminum Cabinet: Lifetime warranty against rust

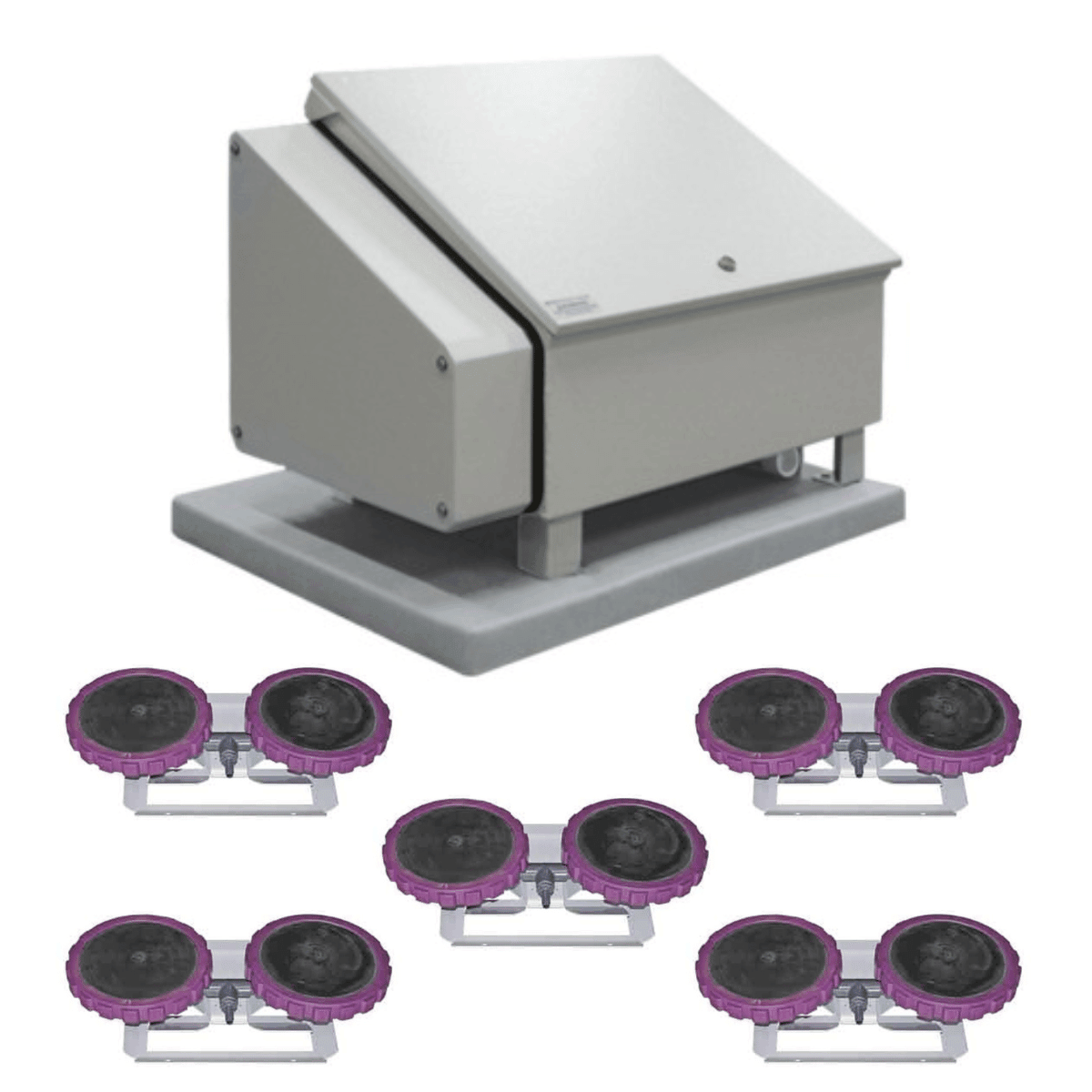

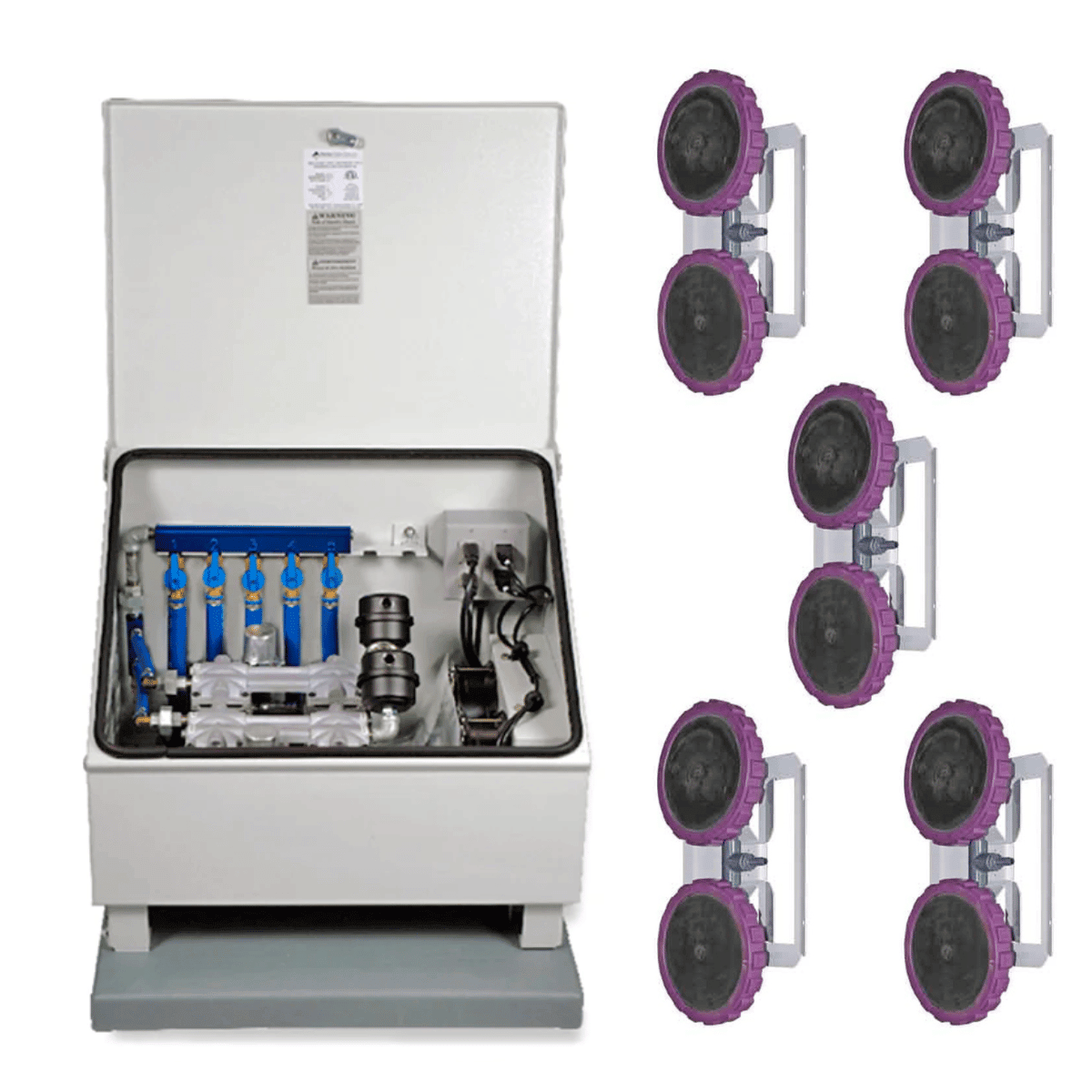

Includes
- Two 1/2 HP Dual Piston Brookwood Compressors
- Five XL2 CoActive AirStations with dual-head, self-cleaning diffusers
- Powder-coated aluminum cabinet with stamped ventilator grill
- Heavy-duty cabinet mounting pad
- Five-valved aluminum control manifold
- Optional sound-reduction kit for enhanced noise control
