Vertex High-Quality RingJet Floating Fountain

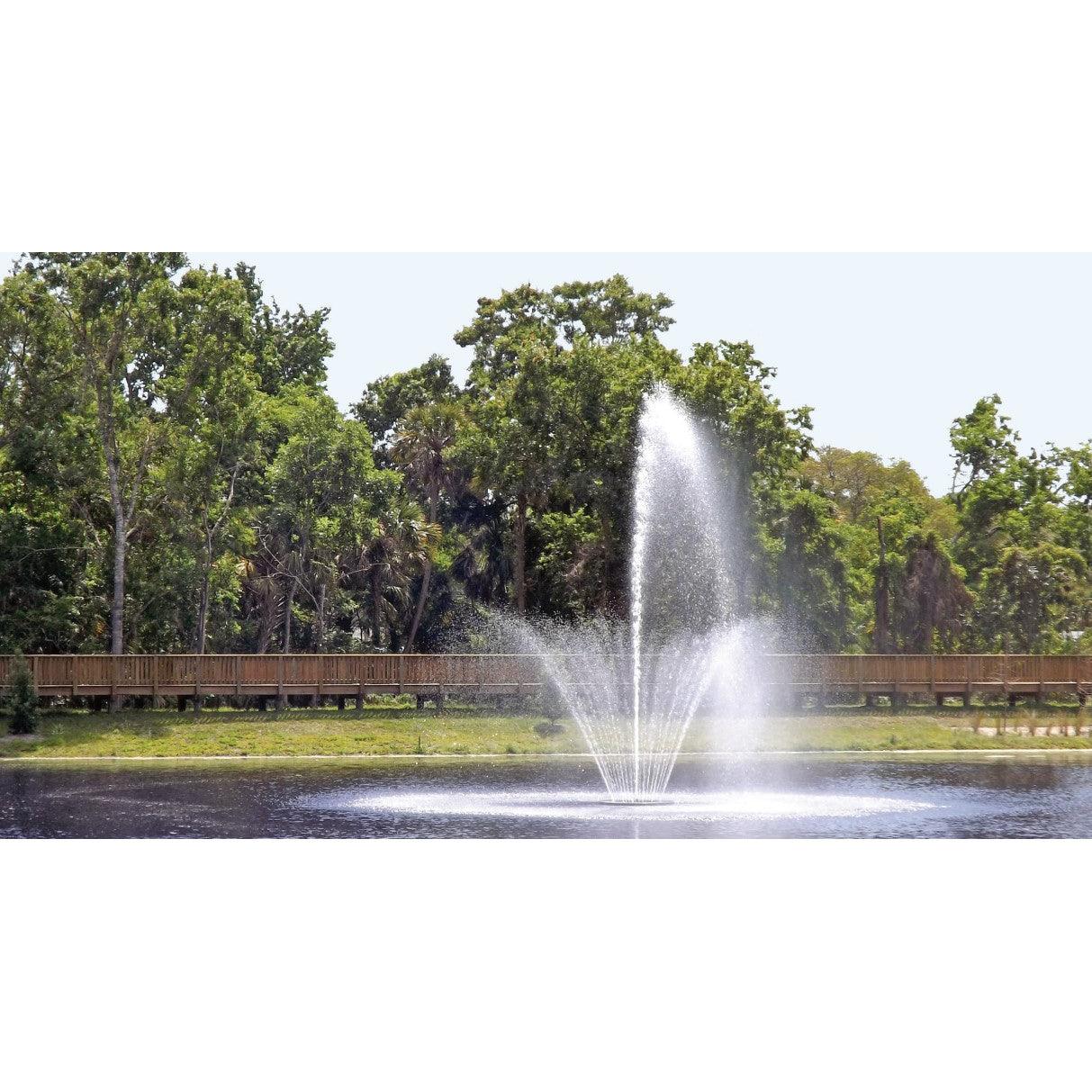

Create a stunning and refined water feature with the Vertex High-Quality RingJet Floating Fountain. Designed for large-scale applications, this elegant fountain features a custom spray ring that produces a graceful, tulip-like water arch. Perfect for commercial environments, it blends high-performance technology with a durable, eco-conscious design.
Features
- Elegant Water Display: Custom spray ring creates a beautiful, tulip-shaped water arch for a sophisticated visual appeal.
- Powerful Options: Available in 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, and 15 HP configurations to match large-scale needs.
- Tailored LED Lighting: Recommended lighting packages—3 lights for 2 HP and 3 HP, 4 lights for 5 HP and 7.5 HP, and 5 lights for 10 HP and 15 HP.
- Durable Construction: Made with high-quality, corrosion-resistant materials for long-lasting performance and minimal upkeep.
- Reliable Technology: Includes a UL-listed control panel and a heavy-duty submersible turbine pump for consistent, high-performance operation.
- Efficient Operation: Designed to minimize energy use, reducing operating costs and supporting sustainable water management.
Warranty
- 4-Year Warranty: Covers the stainless steel turbine pump/motor assembly with water-cooled design and UV-resistant rotocast polypropylene float assembly.
- 2-Year Warranty: Protects the LED lighting components for brighter, energy-efficient illumination.

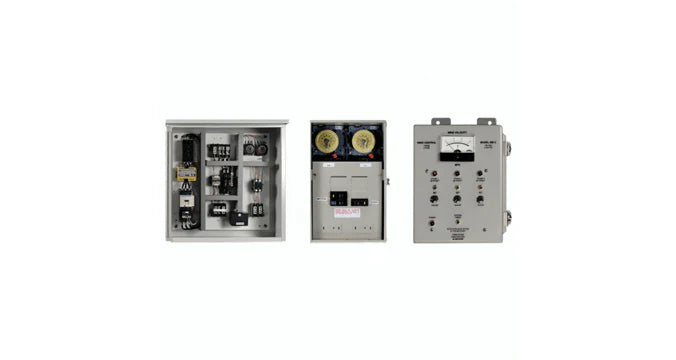

- 1-Year Warranty: Covers the control panel with Class A GFCI protection in a weatherproof steel enclosure. Additional options include wind-sensing shutoff, remote control, and master control panels.
Includes
- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Display Head/Nozzle
- Stainless Steel Intake Screen
- UL Listed Control Panel
- STW-A Rated Submersible Cable
- 140 Lumen/Watt Stainless Steel Light Fixtures
- Comprehensive Warranty

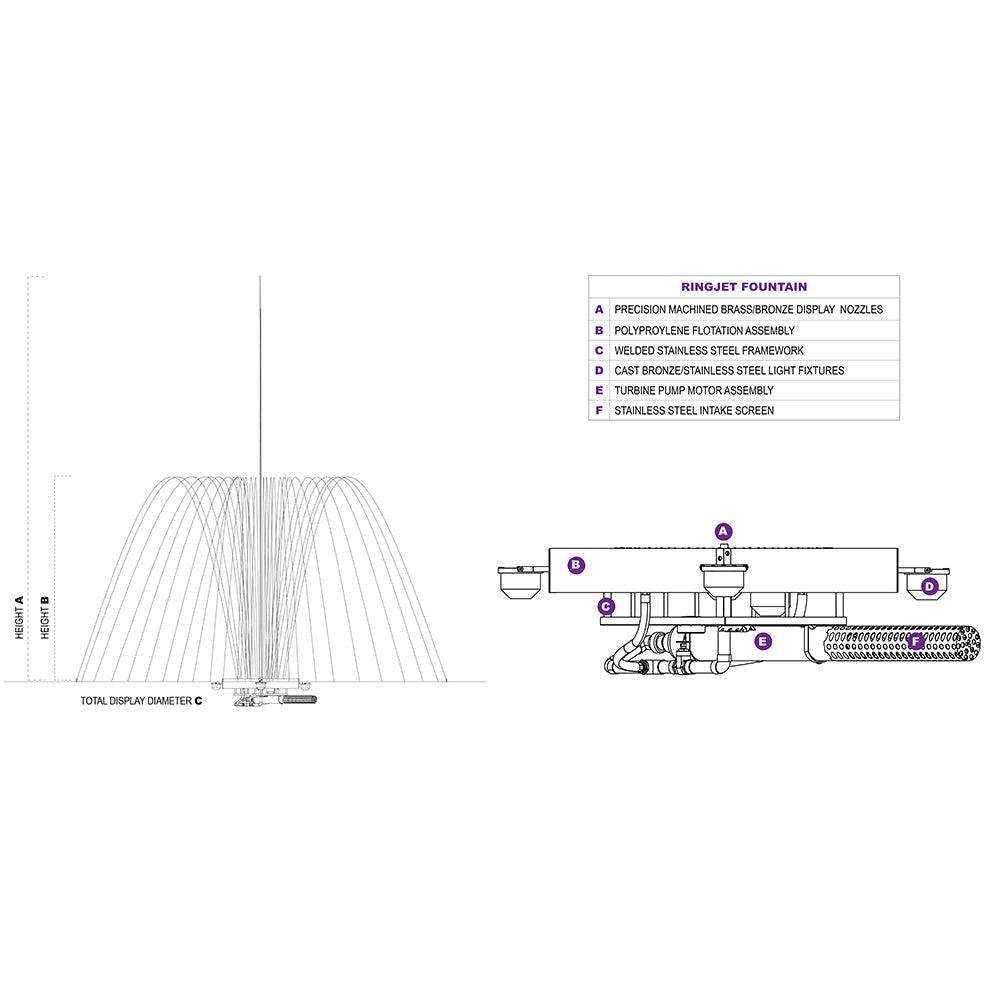

Technical Specifications
| 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit | |
| Minimum Operating Depth | 4' | 5' | 6' | 7' |
| Center Height (A) | 25' | 30' | 40' | 45' |
| Side Height (B) | 12' | 15' | 18' | 20' |
| Diameter (C) | 25' | 30' | 35' | 40' |
| Nozzle Diameter | 3/16" | 3/16" | 1/4" | 1/4" |
| LED Lights | 4 | 4 | 5 | 5 |
| Total Wattage | 172W | 172W | 215W | 215W |
| AMP Draw | 2 | 2 | 2.5 | 2.5 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
