Vertex Premium TriGeyser Floating Fountain

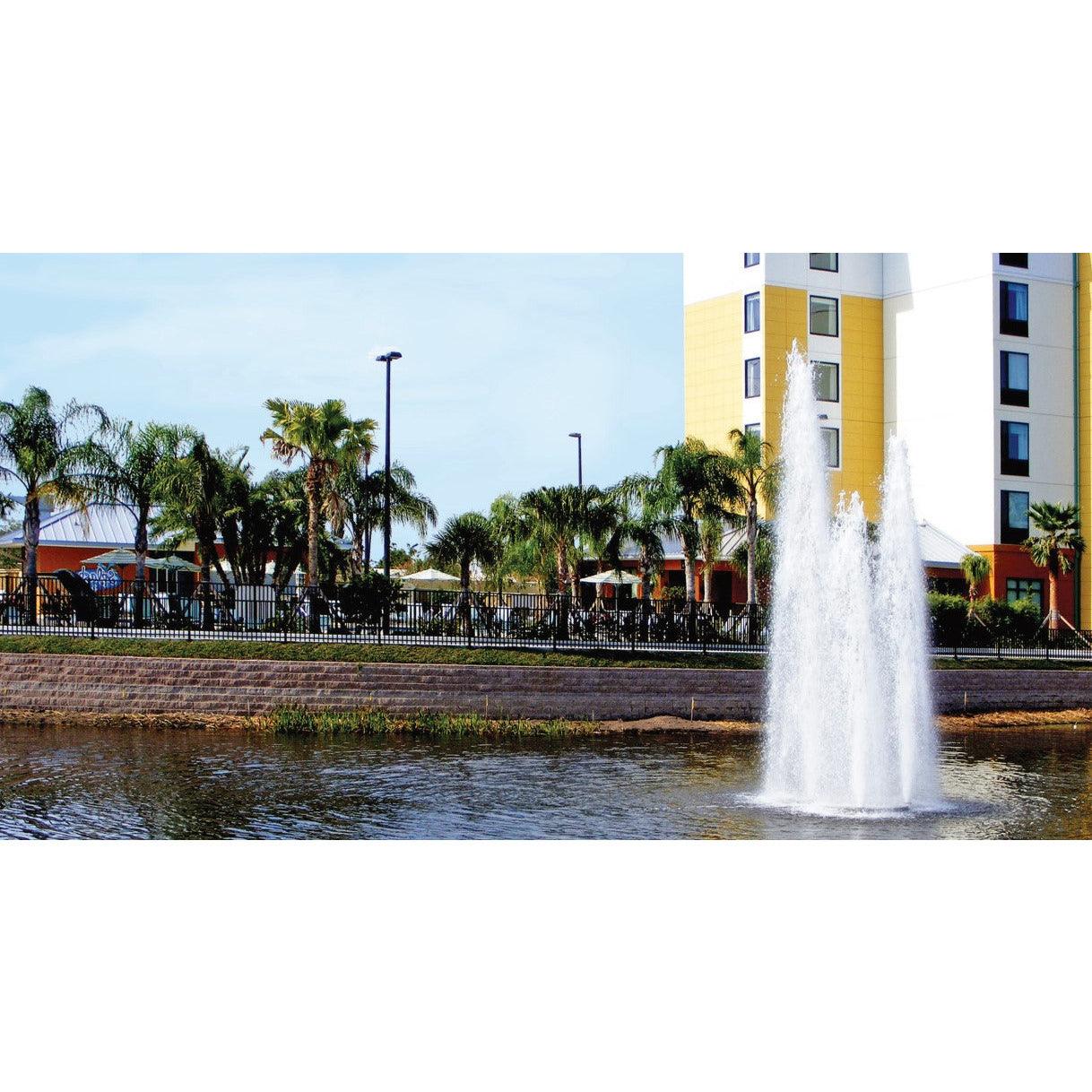

Transform large ponds and lakes into captivating displays with the Vertex Premium TriGeyser Floating Fountain. Designed for expansive applications, this fountain features three aerated jets creating a stunning water pyramid with adjustable height settings. Perfect for enhancing aesthetics and promoting eco-friendly practices, it combines innovative design with exceptional durability.
Features
- Dynamic Water Display: Three heavily aerated conical jets form a mesmerizing pyramid, with customizable height adjustments for tailored effects.
- Available Capacities: Choose from 10 HP, 15 HP, 20 HP, or 30 HP to suit your needs.
- Recommended LED Lighting: Equipped with six energy-efficient LED lights, delivering bright, long-lasting illumination.
- Superior Durability: Waterproof components and corrosion-resistant materials ensure lasting performance and low maintenance.
- Reliable Technology: Includes a UL-listed control panel and a heavy-duty submersible turbine pump for consistent, high-performance operation.
- Eco-Friendly Operation: Harness solar power for reduced energy costs and sustainable performance.
Warranty
- 4-Year Warranty: Covers the stainless steel turbine pump/motor assembly with a water-cooled design and the UV-resistant rotocast polypropylene float assembly.
- 2-Year Warranty: Includes LED lighting components for energy-efficient and customizable illumination.
- 1-Year Warranty: Protects the control panel with Class A GFCI protection in a weatherproof steel enclosure. Optional features include wind-sensing shutoff, remote control, and master control panels.
Includes

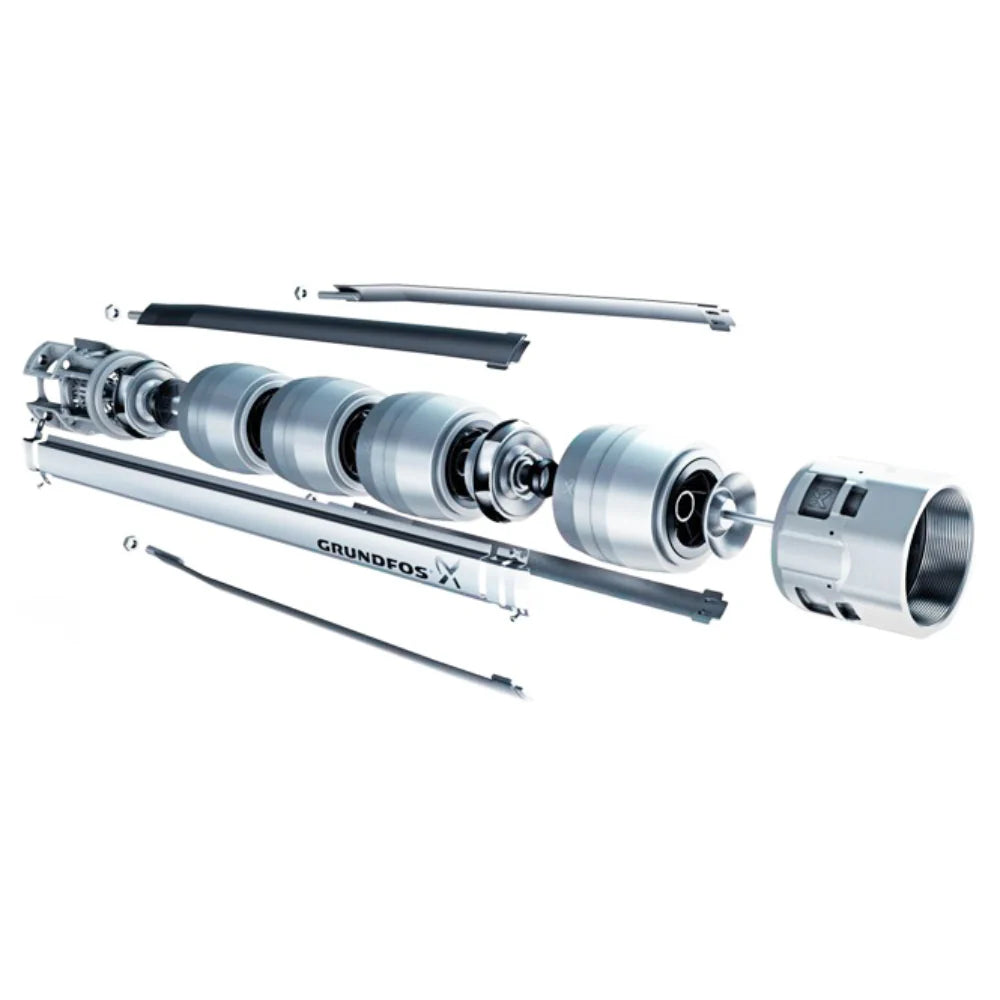

- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Display Head/Nozzle
- Stainless Steel Intake Screen
- UL Listed Control Panel
- STW-A Rated Submersible Cable
- 140 Lumen/Watt LED Light Fixtures
- Comprehensive Warranty

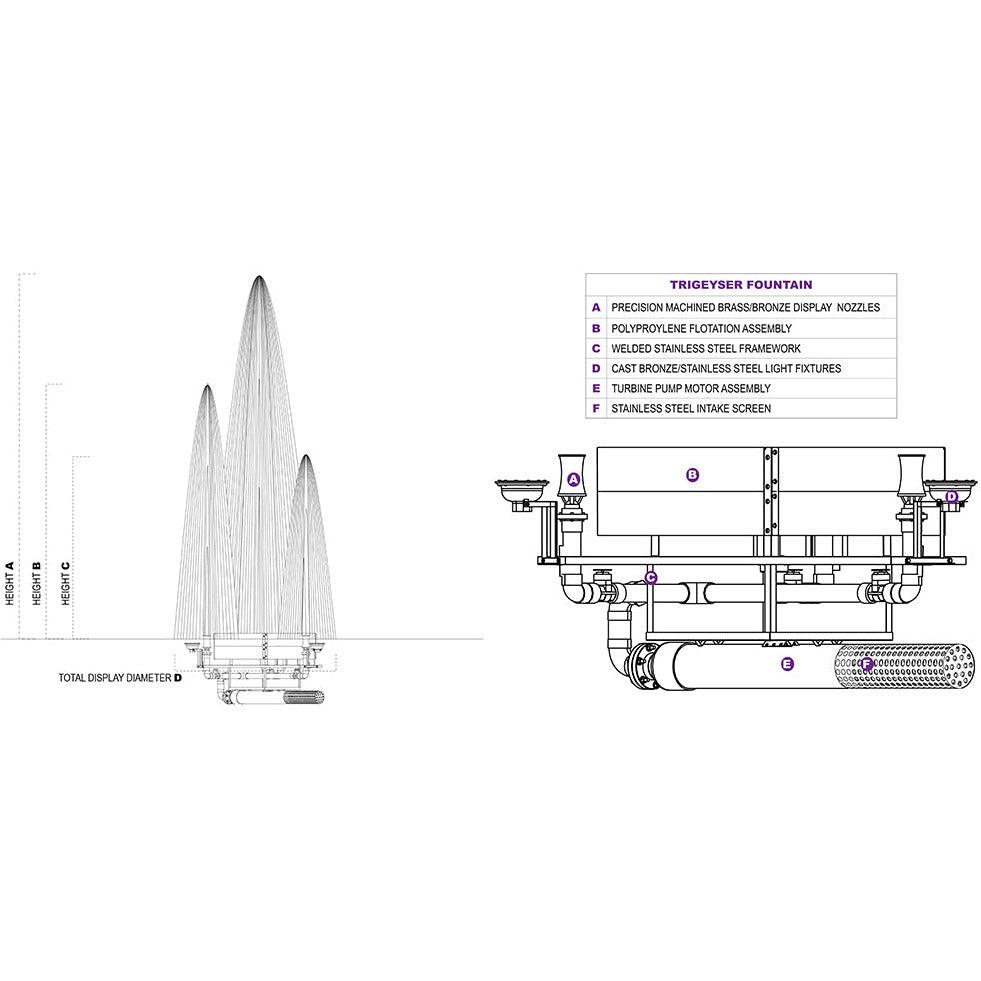

Technical Specifications
| 10 HP Unit | 15 HP Unit | 20 HP Unit | 30 HP Unit | |
| Minimum Operating Depth | 6' | 7' | 7' | 8' |
| Spray Height 1 (A) | 15' | 18' | 22' | 25' |
| Spray Height 2 (B) | 10' | 12' | 15' | 18' |
| Spray Height 3 (C) | 6' | 8' | 10' | 12' |
| Diameter (D) | 8' | 9' | 10' | 12' |
| LED Lights | 6 | 6 | 6 | 6 |
| Total Wattage | 258W | 258W | 258W | 258W |
| AMP Draw | 3 | 3 | 3 | 3 |
| Available Phase | 1 & 3 | 1 & 3 | 3 | 3 |
| 1 Phase (Volts) | 230 | 230 | - | - |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 230 | 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
