Vertex TriTier Floating Pond Fountain
Elevate the aesthetic appeal of your pond or lake with the Vertex TriTier Floating Pond Fountain, a luxurious and powerful water feature. This fountain is designed for commercial applications, offering adjustable heights for a customizable display and equipped with high-performance components. Whether you’re aiming to create a stunning visual centerpiece or add a touch of elegance to your water feature, the TriTier fountain delivers both sophistication and reliability.
Features
- Versatile Power Options: Available in 2 HP, 3 HP, 5 HP, 7.5 HP, 10 HP, and 15 HP configurations for large-scale commercial use.
- Custom LED Lighting: Choose from 2 to 5 lights based on the fountain’s horsepower for optimal nighttime illumination.
- Elegant Water Display: Features a beautiful three-tier design with floral arches, created by precision-machined brass nozzles, with heights ranging from 18 to 40 feet.
- Adjustable Heights: Customizable height settings to match your desired visual impact.
- Durable Construction: Built with a heavy-duty submersible turbine pump and UL-listed control panel, all components are fully waterproof and made from premium corrosion-resistant materials.
- Reliable Performance: Designed for high-efficiency operation and long-term dependability, offering a consistent water feature.
- Cost-Effective Operation: Operates on solar power, helping you eliminate electricity costs and enhance energy efficiency.
- Eco-Friendly: Supports environmental sustainability by using clean, green solar energy, reducing your carbon footprint.
Warranty
- 4-Year Warranty: Covers the turbine pump/motor assembly and float assembly for long-term protection.
- 2-Year Warranty: Protects the LED lighting components for energy-efficient and customizable illumination.
- 1-Year Warranty: Covers the control panel, designed with Class A GFCI protection and housed in a weatherproof steel enclosure.

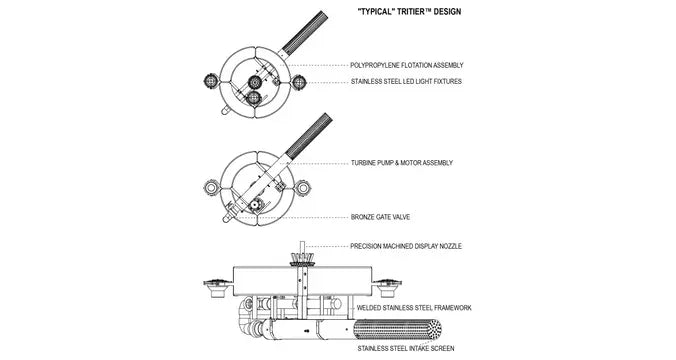

Includes
- Stainless Steel Turbine Pump
- UV-Resistant Rotocast Polypropylene Float
- Stainless Steel Intake Screen and Display Head/Nozzle
- UL-Listed Control Panel with STW-A Rated Submersible Cable
- 140 Lumen/Watt Stainless Steel Light Fixtures
- Comprehensive Warranty
Technical Specifications

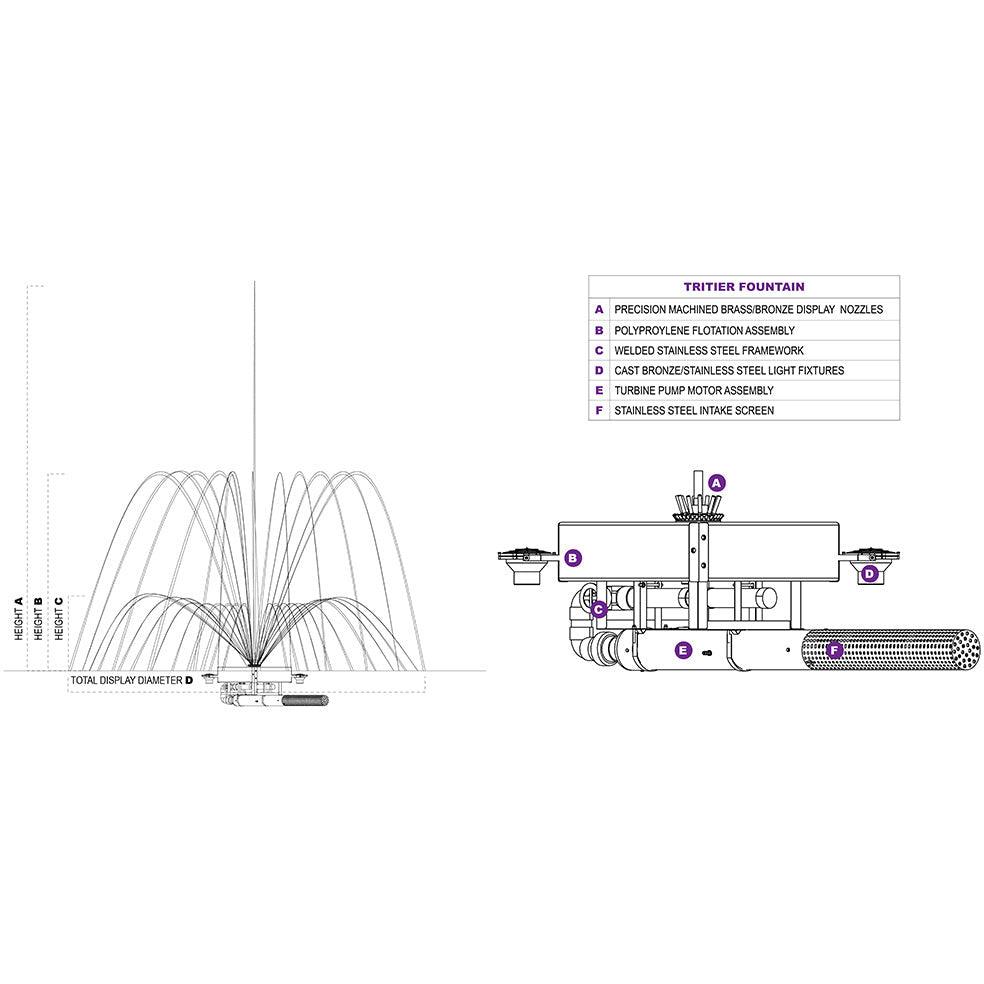

| 2 HP Unit | 3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit | |
| Minimum Operating Depth | 3' | 4' | 4' | 5' | 6' | 7' |
| Spray Height 1 (A) | 18' | 23' | 26' | 30' | 35' | 40' |
| Spray Height 2 (B) | 8' | 10' | 12' | 15' | 17' | 20' |
| Spray Height 3 (C) | 4' | 5' | 6' | 7' | 8' | 10' |
| Diameter (D) | 20' | 25' | 40' | 45' | 50' | 55' |
| LED Lights | 2 | 2 | 3 | 4 | 4 | 5 |
| Total Wattage | 86W | 86W | 129W | 172W | 172W | 215W |
| AMP Draw | 1 | 1 | 1.5 | 2 | 2 | 2.5 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
